Contactless Centration  // Wedge



DIAMETER MEASURING SYSTEM


  • precise measuring system for measuring centration on precision optical lenses


  • simultanious measurement of the runout of upper and lower surface plus edge runout relative to the rotational position one the rotational position controlled lens


  • high precise, balanced linear axis, air bearing guided, for each autocollimator


  • accurate, contactless edge detection sensor located on positionable X-Z slide


  • precise, encoded rotational axis - airbearing guided - for lens movement


  • diameter and taper analysis optional


  • small foot print and exceptional value combined with high accuracy and rigit, maintenance free design


  • innovative, powerful and user friendly analysis system X-cm with different smart and intelligent modes to suit various applications


  • compatible with XONOX IQC system for automated setup and automated documentation of measurements in series

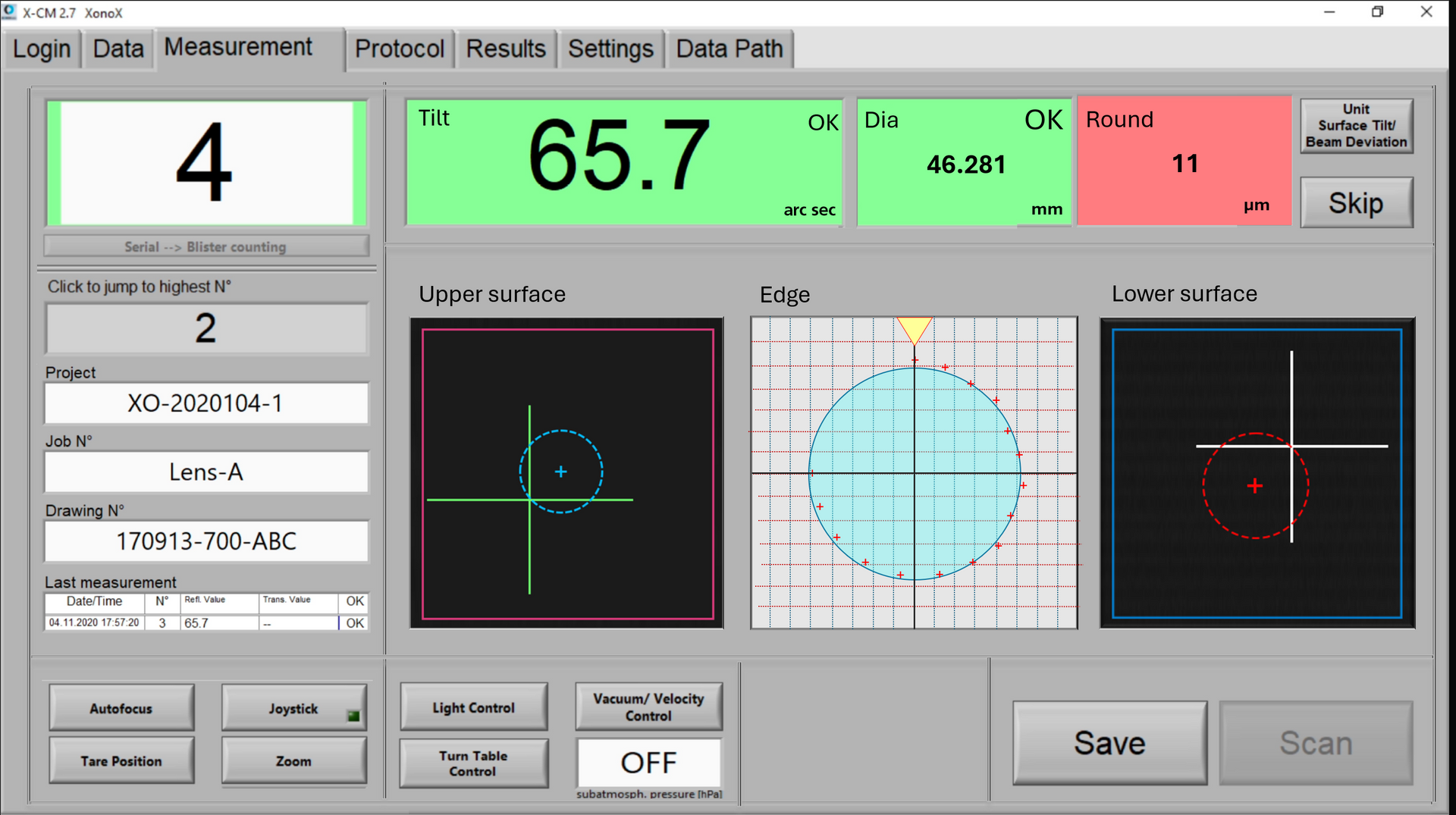

X-cm user interface

Measuring principle

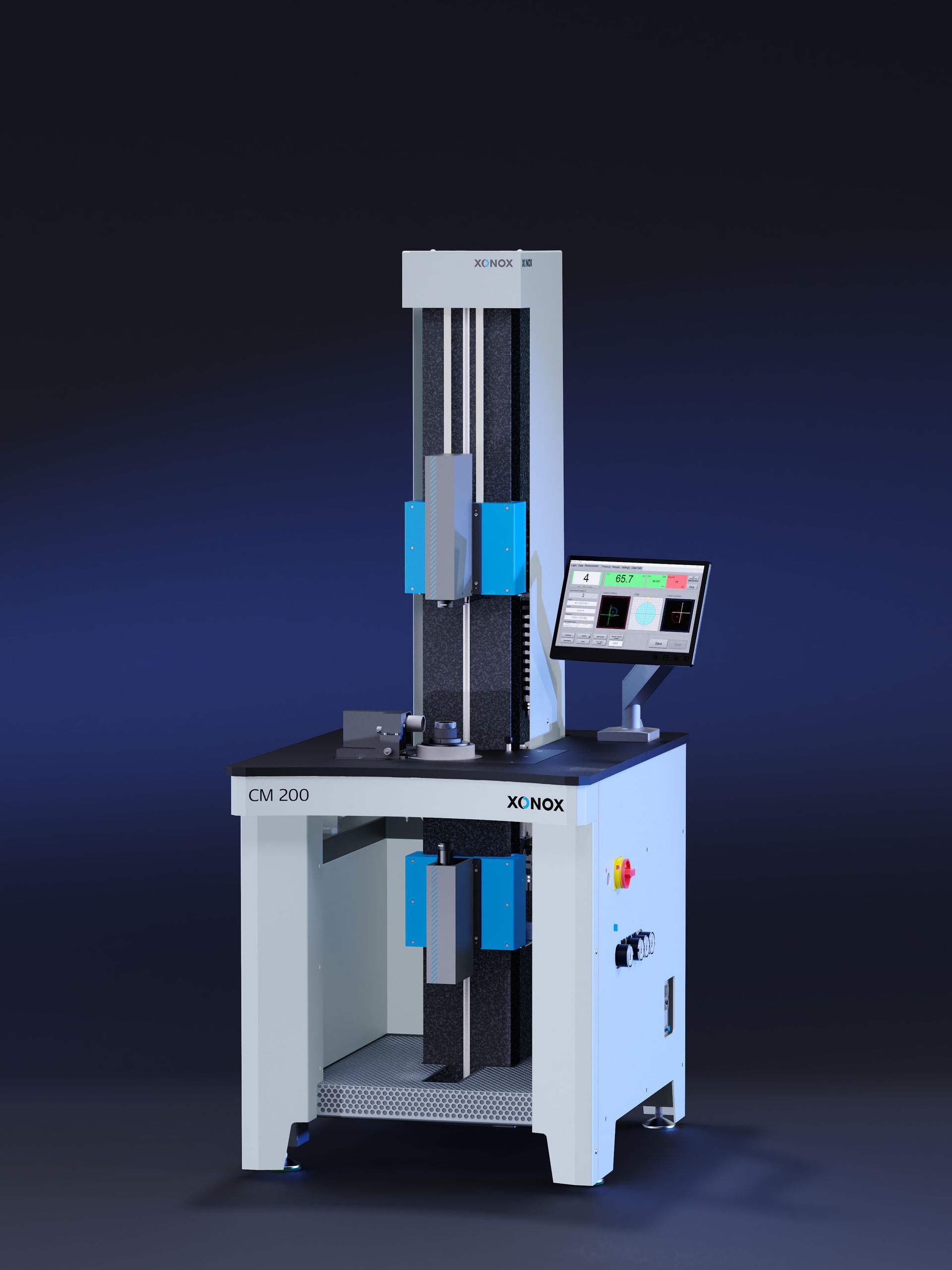

TECHNICAL DATA CM200

  • DIAMETER RANGE

    up to ∅200 mm

  • POSITIONING AXIS

    counterbalanced, air bearing guided axis with smooth, „zero weight“ electronic driven equiped with linear encoder - software

    controlled movement. Wear out and maintenance free design.


    precision air bearing guided rotational axis equipped with rotary encoder - electronic driven and software controlled. Wear

    out and maintenance free design.

  • MEASURING SYSTEM

    - 2x autocollimators (DL and UL) with high resolution CMOS cameras


    - high precision contactless distance measuring sensor.

  • DIMENSIONS (WxDxH)

    800 x 900 x 2650 mm when using touch screen and integrated PC for fringe analysis. (additional space required if separate PC is used for fringe analysis, XONOX PC-table optionally available)

  • WEIGHT

    approx. 750 kg

  • CONNECTIONS

    110-240 V / 50-60 Hz, compressed air: 6 bar

  • COLOR

    Light grey RAL 7035
