Contactless
CT // SAG // Aperture // Height
NON-CONTACT

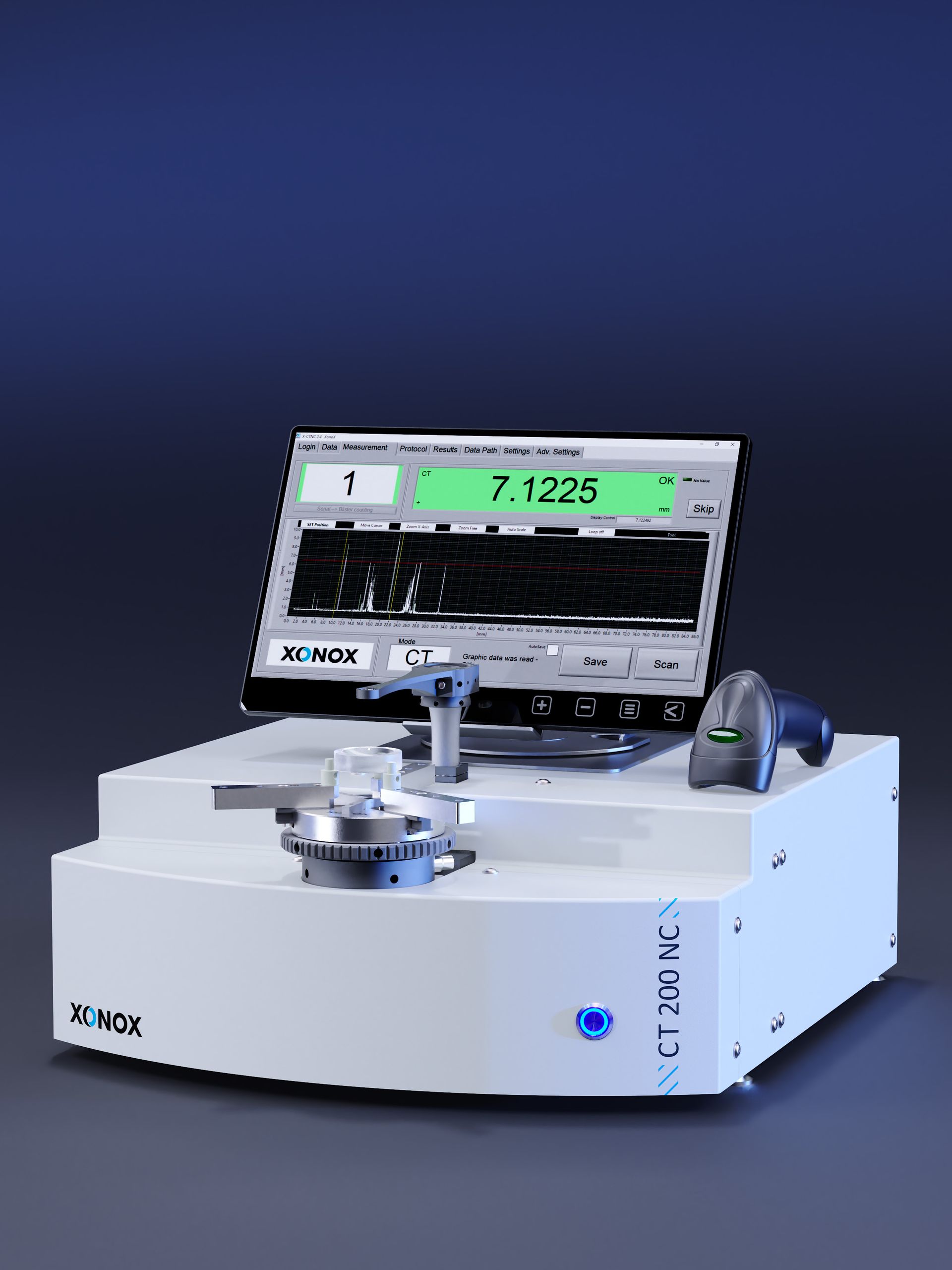

CENTER THICKNESS MEASURING SYSTEM
- highly precise and easy to use non-contact system for measuring the thickness of optical elements in both, production and quality inspection environments
- integrated interferometric sensor for fast, reliable and high precision thickness measurement
- measurement of single elements and doublets
- lenses automatically centered with an innovative precision 3-jaw chuck system
- measurement of elements with one side access only is accommodated. Ideal for testing lenses - even mounted to holders - with demanding CT tolerances in the polishing operation
- measurements of elements with one side access only is accommodated. Ideal for testing lenses - even mounted to holders - with demanding CT tolerances in the polishing operation
- measurement of SAG depth, surface aperture diameter, total lens height and stock removal are supported in addition to CT measurement
- ergonomically positioned lens holder provides for safe easy and fast loading and setup of workpieces up to Ø200mm
- extensive integrated glass database provides ready access to index data. Software supported index finding device allows for easy and quick automatic analysis of unknown index values

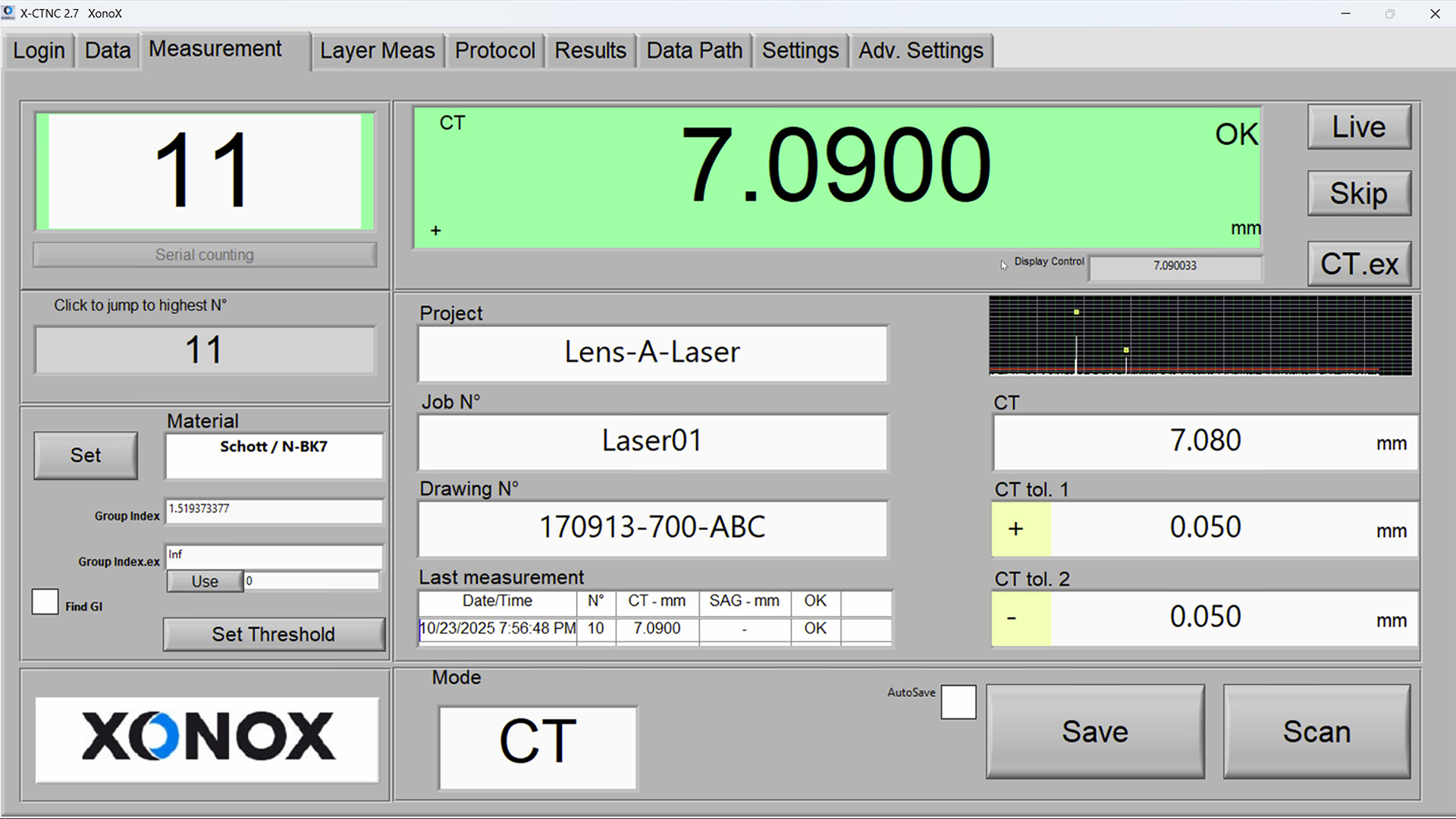

- easy and touch screen optimized dialouge user interface
- automatic counting / numbering of lenses
- green (in spec) or red (out of spec) display of measurements
- data input manually or via OR code reader

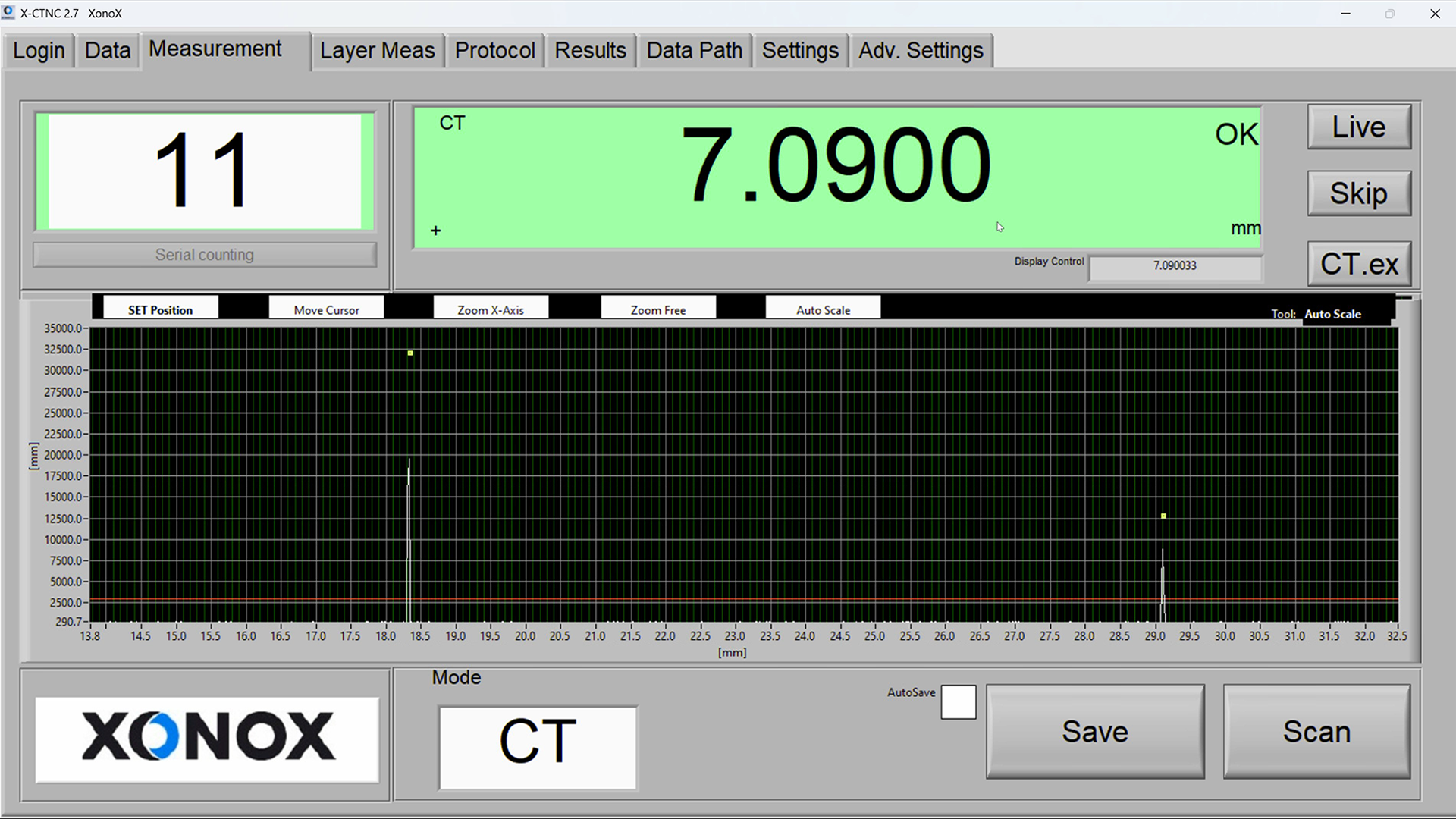

- zoomable live display of measurement signal
- live feedback for correct positioning of the substrate
- adjustable threshold for signal processing
- measurement result within in less than 1 second
- index finding tool for precise measurment of the materials index
- integreated database with indexes of most material suppliers
- possibility of creating own database with self measured indexes
- revers calculation of material index to confirm correct material
- single lenses and flats
- various UV // VIS // IR materials
- lenses on holders and chucks
- protection painted lenses
- Doublets,Triplets, Sub-Assemblies
- Air gaps and Sagital depth
- Micro Optics
- Rod Lenses
