Diameter // Roundness // Taper

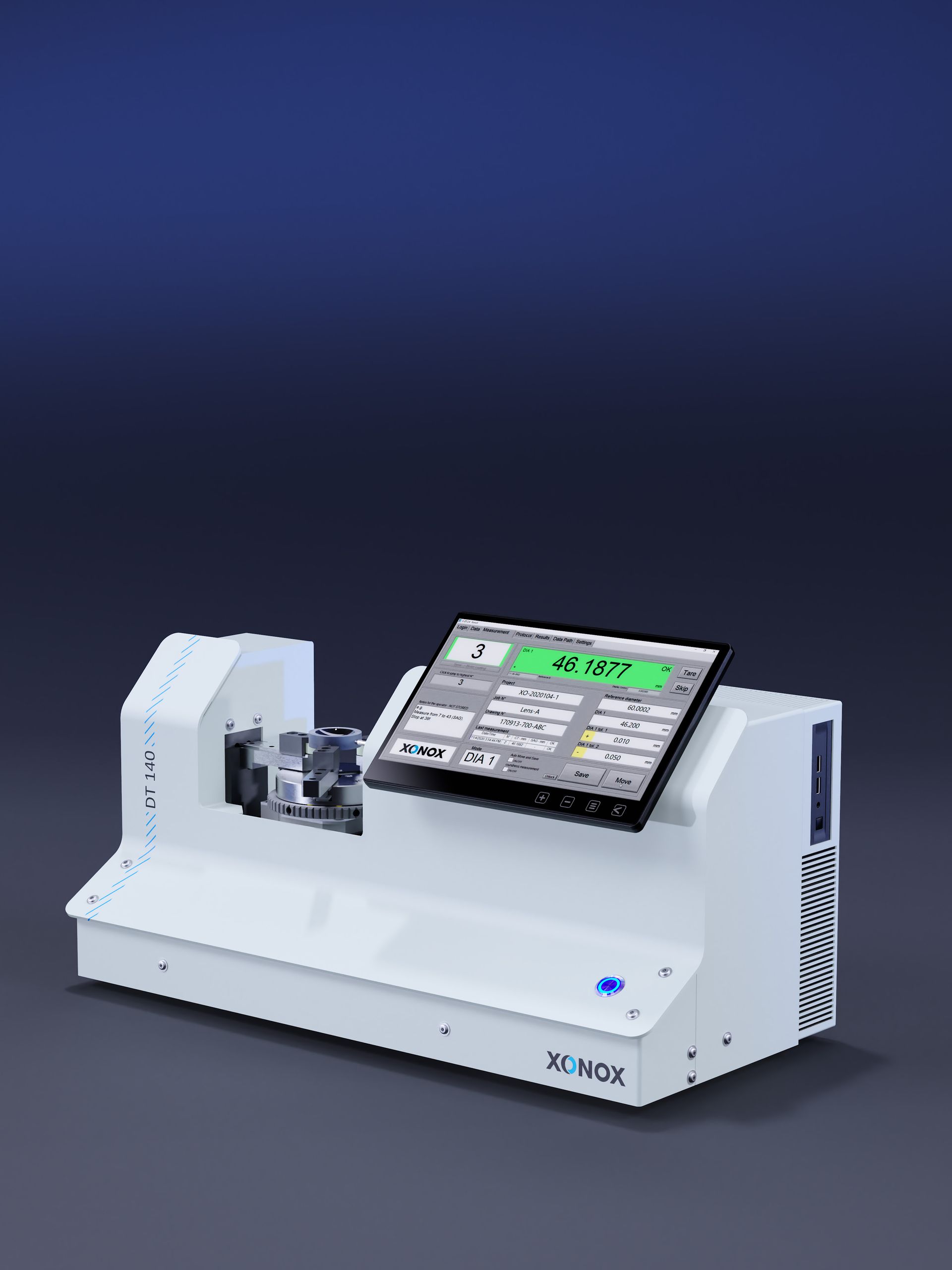

DIAMETER MEASURING SYSTEM
- equipped with electronic control of measuring cycle via touch screen interface. Software controlled editing and configuration of automated motion cycles, linked to the specific job
- highly precise and easy to use system for measuring the diameters, roundnes and cone on optical elements in both, production and quality inspection environments
- designed for long term reliability and cost effective operation

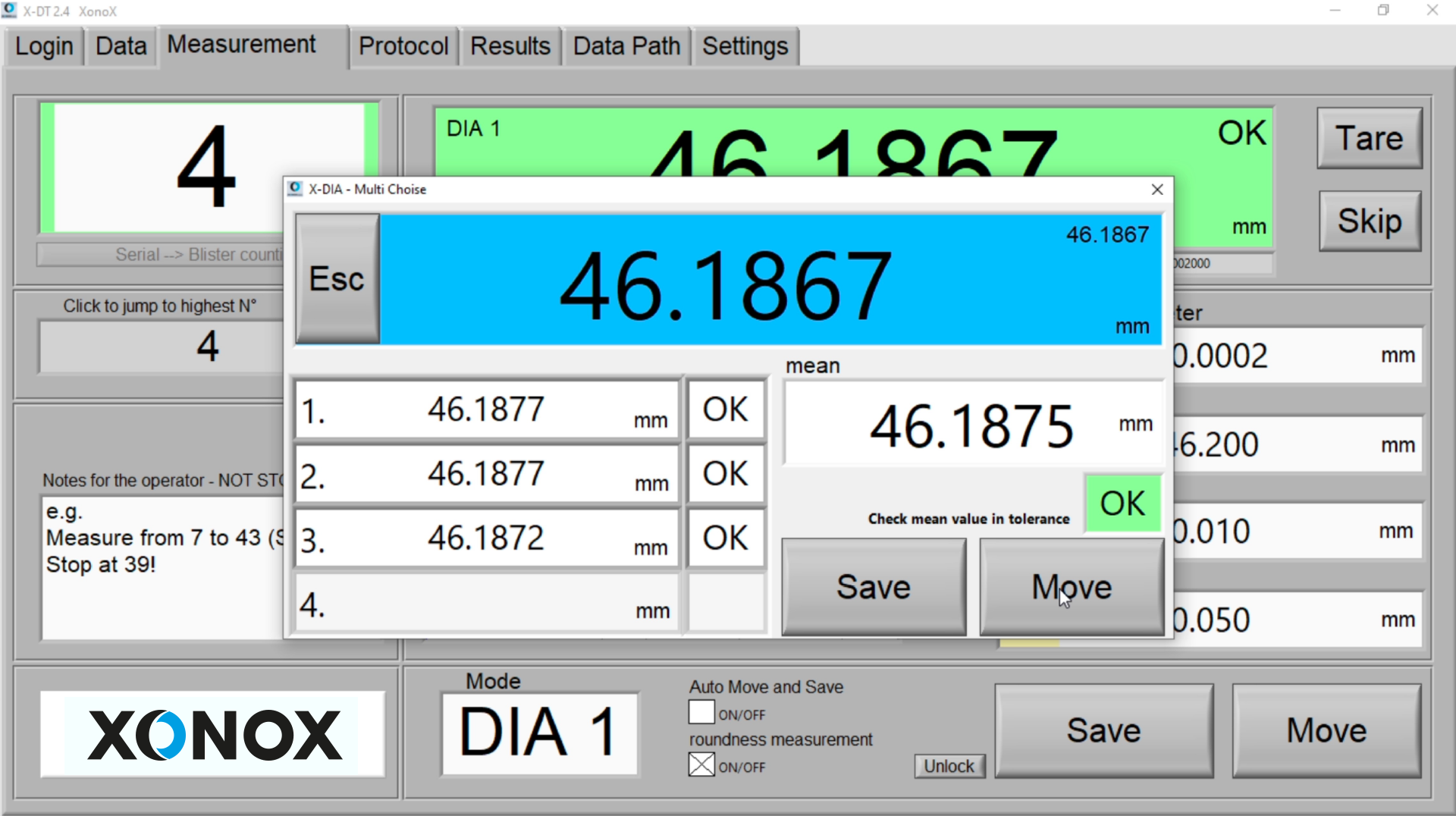

- measurement of secondary diameters, roundness and taper are supported in addition to the primary diameter
- lenses automatically centered with an innovative precision 3-jaw chuck system
- direct measurement of diameter achieved through automatic, pneumatic actuation of probes that touch the edge of the work-piece
- probe contact height is adjustable to be compatible with steps and other edge features
- optimized for safe, fast and easy setup and loading of workpiece
- large measurement range from below Ø8mm up to Ø140mm
- software and controller package "X-dt" offers additional measure-mentmodes, automatic documentation creation and datalogging of measurement results
- easy and touch screen optimized dialouge user interface
- automatic counting / numbering of lenses

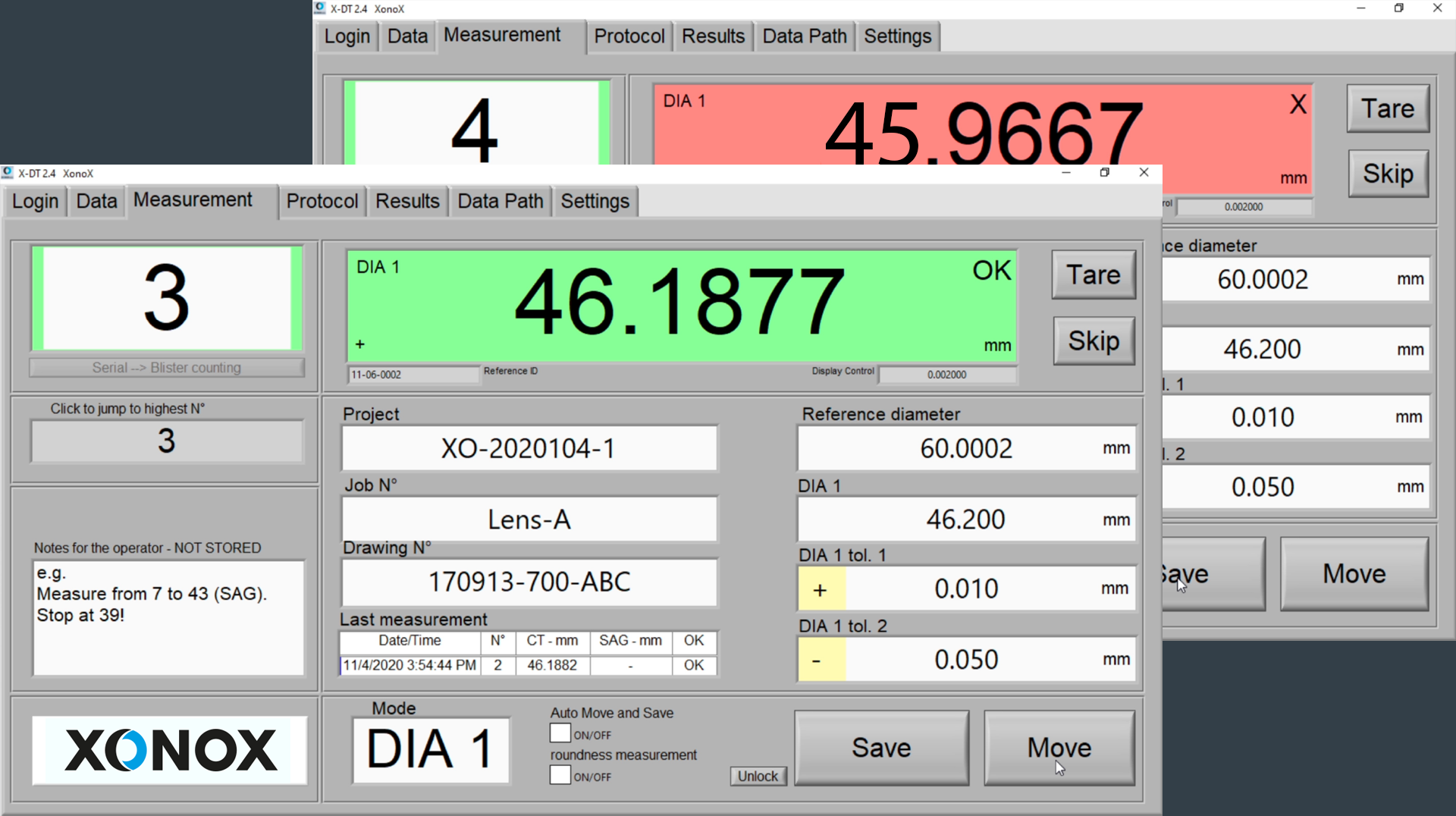

- green (in spec) or red (out of spec) display of measurements
- data input manually or via OR code reader
- intelligent and easy-to-use setup for administrative functions and user handling
- quick setup for auxiliary equipment such as QR reader, footswitch etc.
- easy network integration and path settings for documentation

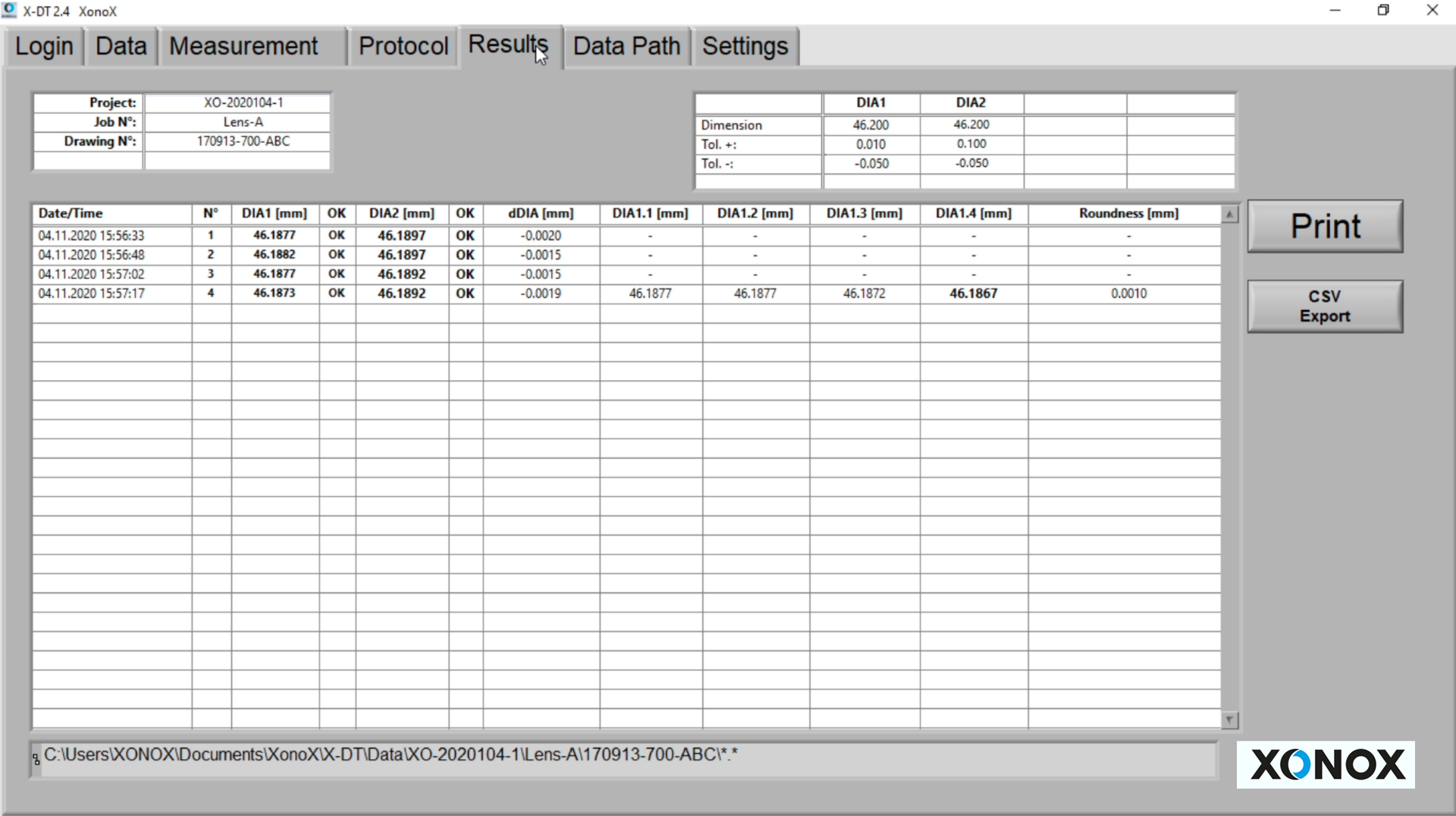

- automatic documentation of all measurements
- listing of CT, SAG depth, Total Hight, Apperture Diameter
- automatic marking IN/OUT of spec for all dimensions
- extensive data export functions + X-metroLINK compatible
