Transmission Spheres

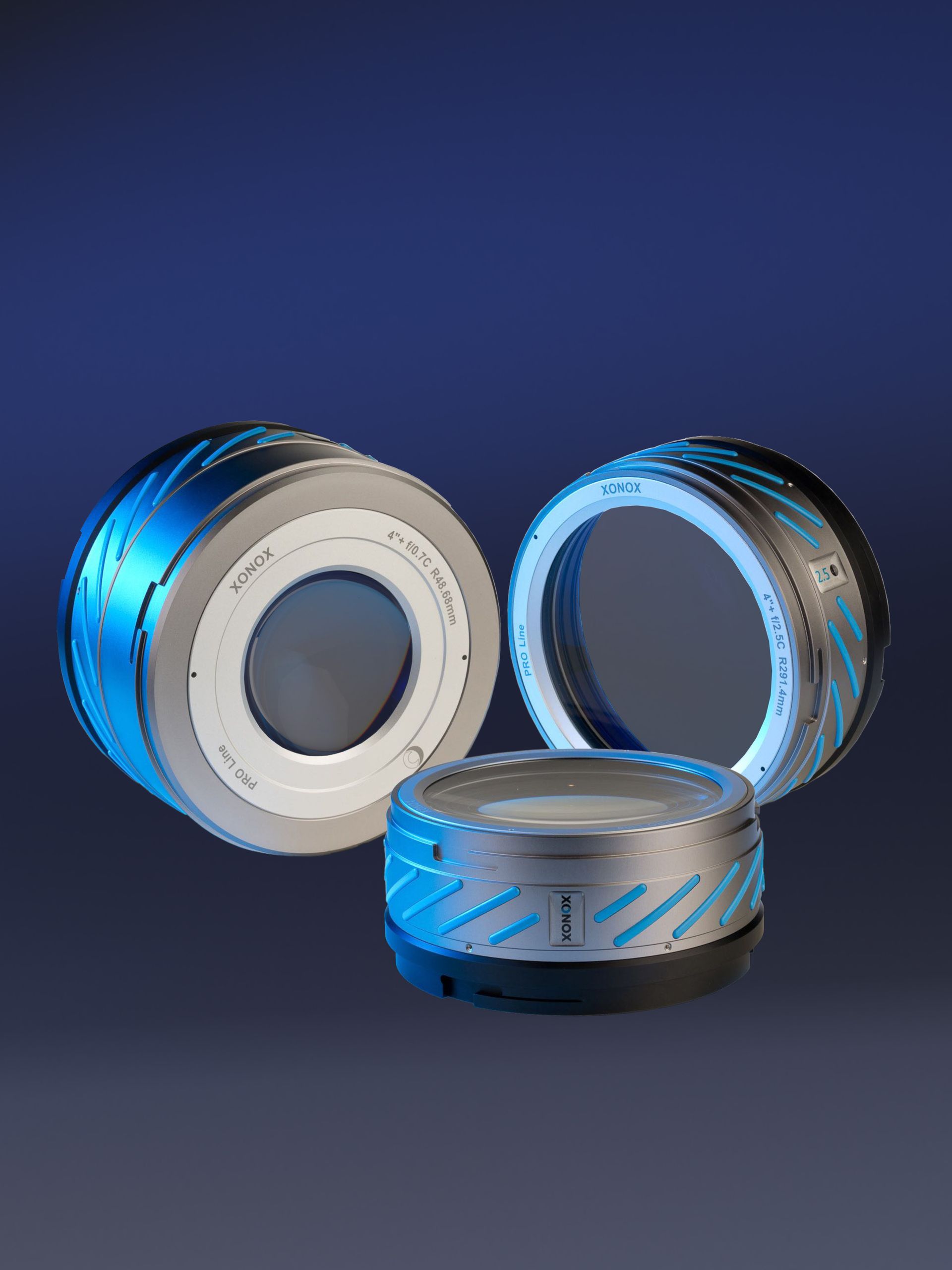

XONOX 4+ Transmission Spheres
5.2" FIZEAU TRANSMISSION SPHERES FOR USING ON 4“ INTERFEROMETERS - PROVIDING EXTENDED MEASURING RANGE
- integrated 30% wavefront expansion turns each standard 4“ interferometer virtually into a 5.2“system with 30% larger aperture
- no mechanical or optical modification required on existing systems - just mount in existing 4“ standard bayonet and start
- fully interchangeable with existing standard 4“ TS
- huge added value by up to 60% more coverage of lens surfaces in terms of visible lens aperture and pricing like classical 4“ TS
- innovative f/ number line for improved and gap free coverage of much more surfaces for full aperture measurement
- high quality optics, mechanics and innovative assembly for long term sealing against dust
- excellent, hand crafted reference surfaces, free of any features caused by machine- or sub aperture polishing
- „Smart Case“ - the practical, user oriented and safe box- and handling system
- highest quality 100% made at XONOX, Germany
The Big + when using XONOX4+ TS - zooming any 4" to a 5.2" Interferometer
The principle of the + on the XONOX4+ TS
TECHNICAL DATA XONOX4+ TS
SMART CASE - The innovative case- and handling concept
- innovative new case and cover system fore convenient storage
- combined box/lens cover for easy and save TS handling and protection
