Edge Painting // Mask Painting
EDGE AND MASK PAINTING SYSTEM
- system for safe, easy and efficient painting and varnishing of edges and precise surface masks on optical components
- observation of the painting area via live video system with monitor and high magnification
- exact adjustment of aperture mask for painting limits via software and precise gauge
- adjustment of lens position and easy re-loading of lenses using precisely adjustable and pneumatically moveable V-Stop
- quality control for mask diameter directly after finishing of painting
- infinitely adjustable rotation speed of workpiece spindle
- infinitely adjustable vacuum for lens holding on resin chuck
- pedals for vacuum on/off and spindle rotation on/off for easy and efficient use even when painting high volumes
- operation optionally via standard camera software or com- prehensive software tool XONOX "X-paint“ with advanced functionality for various and multiple masks

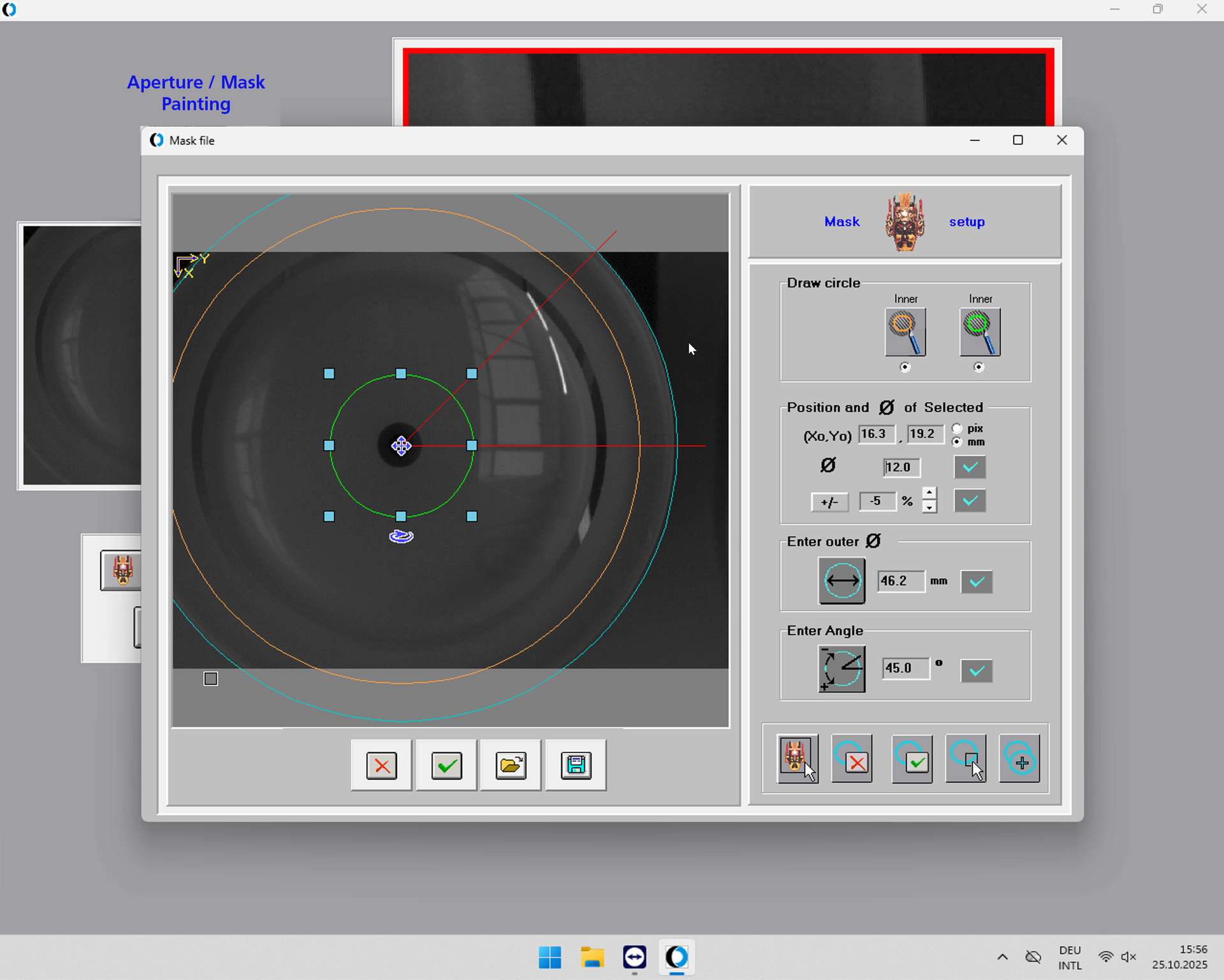

- comprehensive, easy to use mask and angle editor with precise scalling tool
- multiple masks, angles angle marks and precise scalling of mask dimensions

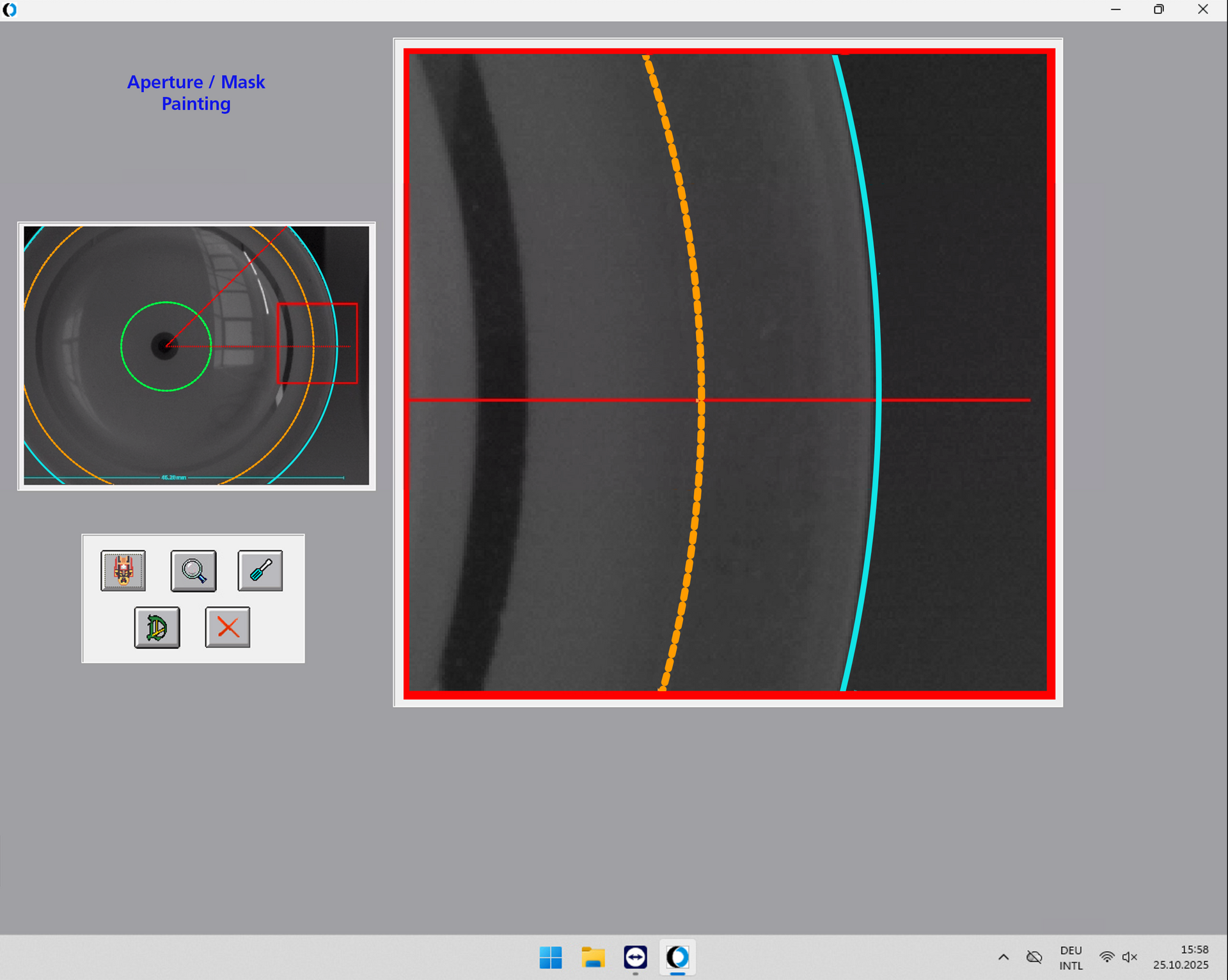

- easy to use, variable zoom for live painting observation and final quality inspection
