CT300
CT-SAG-Aperture-Height

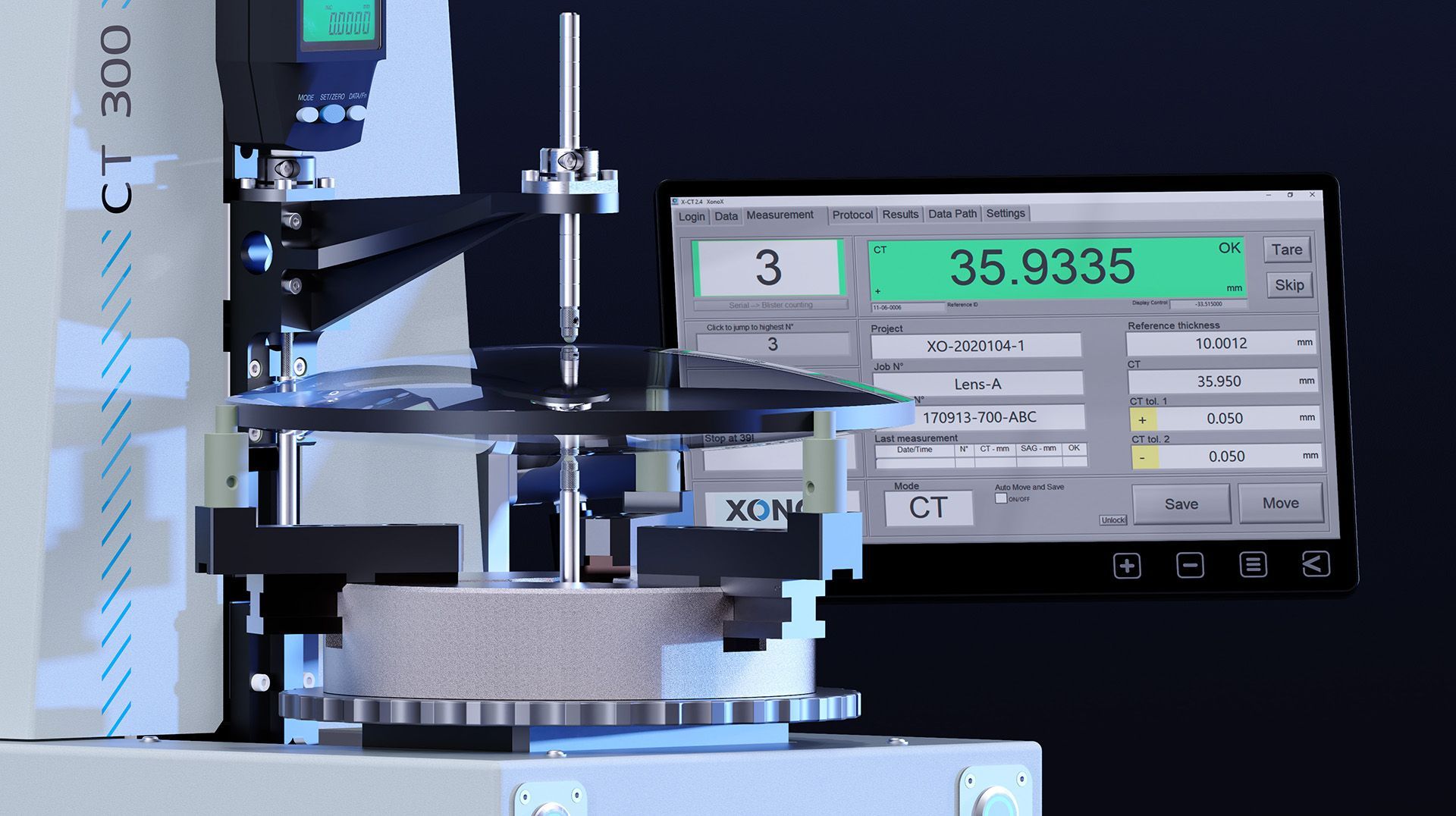

- highly precise and robust Center Thickness measurement system for ground, polished and coated optics in both, production and quality inspection environments
- designed for long term reliability and cost effective operation
- measurements of SAG depth, surface aperture diameter, total lens height and stock removal are supported in addition to CT measurement
- lenses automatically centered with an innovative precision 3-jaw chuck system
- direct measurement of CT achieved through automatic, pneumatic actuation of probes that touch the upper and lower sides of the workpiece simultaneously
- easy, fast and safe setup and loading of workpieces
- proven by many independent parties to virtually eliminate the risk of damage to even the most sensitive polished and coated optics with strict cosmetic requirements
- large measurement range from below Ø8mm up to Ø300mm
- foot switch for easy and efficient measurement of series

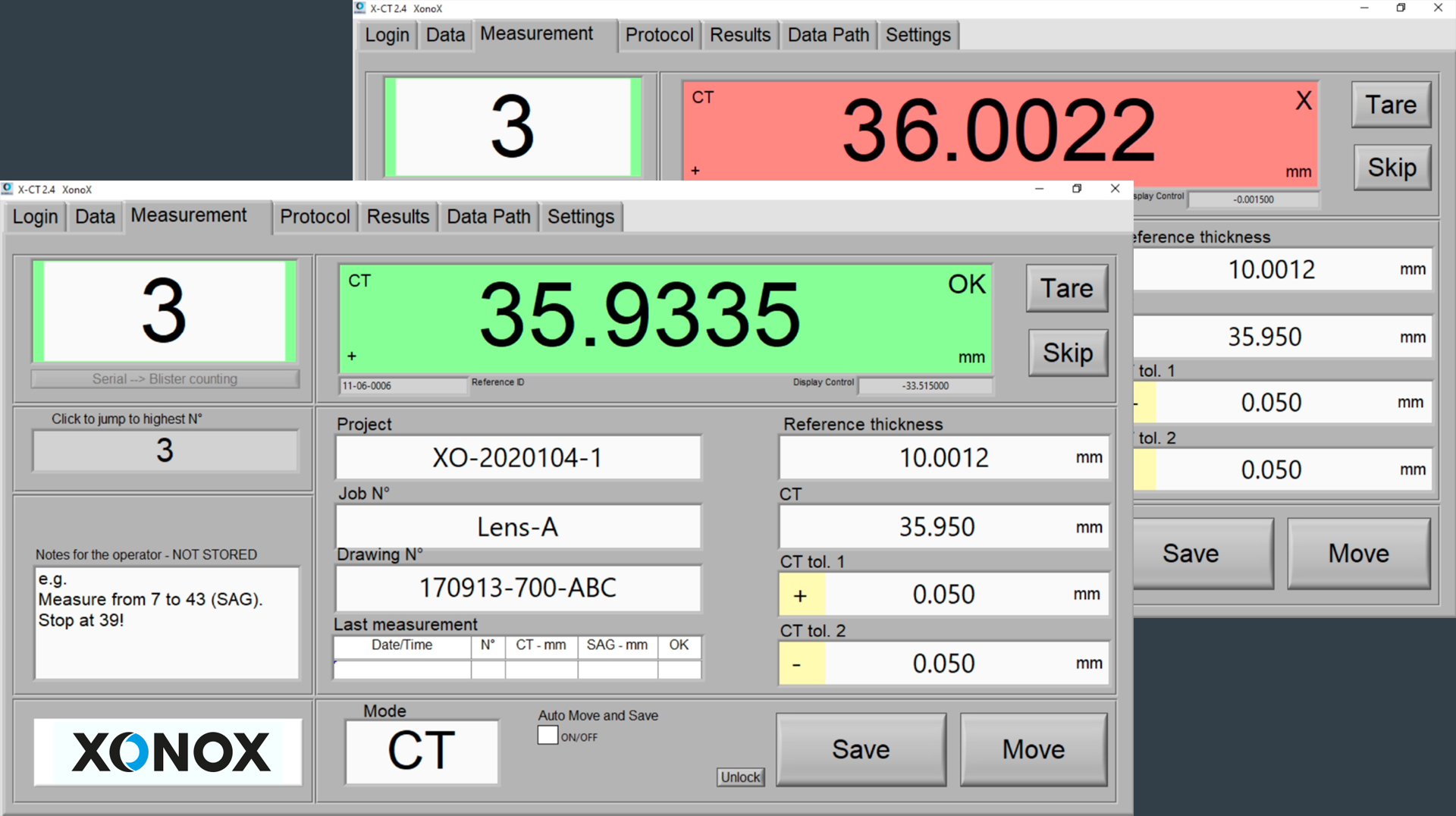

- optional software and controller package, “X-ct” offers additional measurement modes, automatic documentation creation, and data logging of measurement results
- easy and touch screen optimized dialouge user interface
- automatic counting / numbering of lenses
- green (in spec) or red (out of spec) display of measurements
- data input manually or via OR code reader
- intelligent and easy-to-use setup for administrative functions and user handling

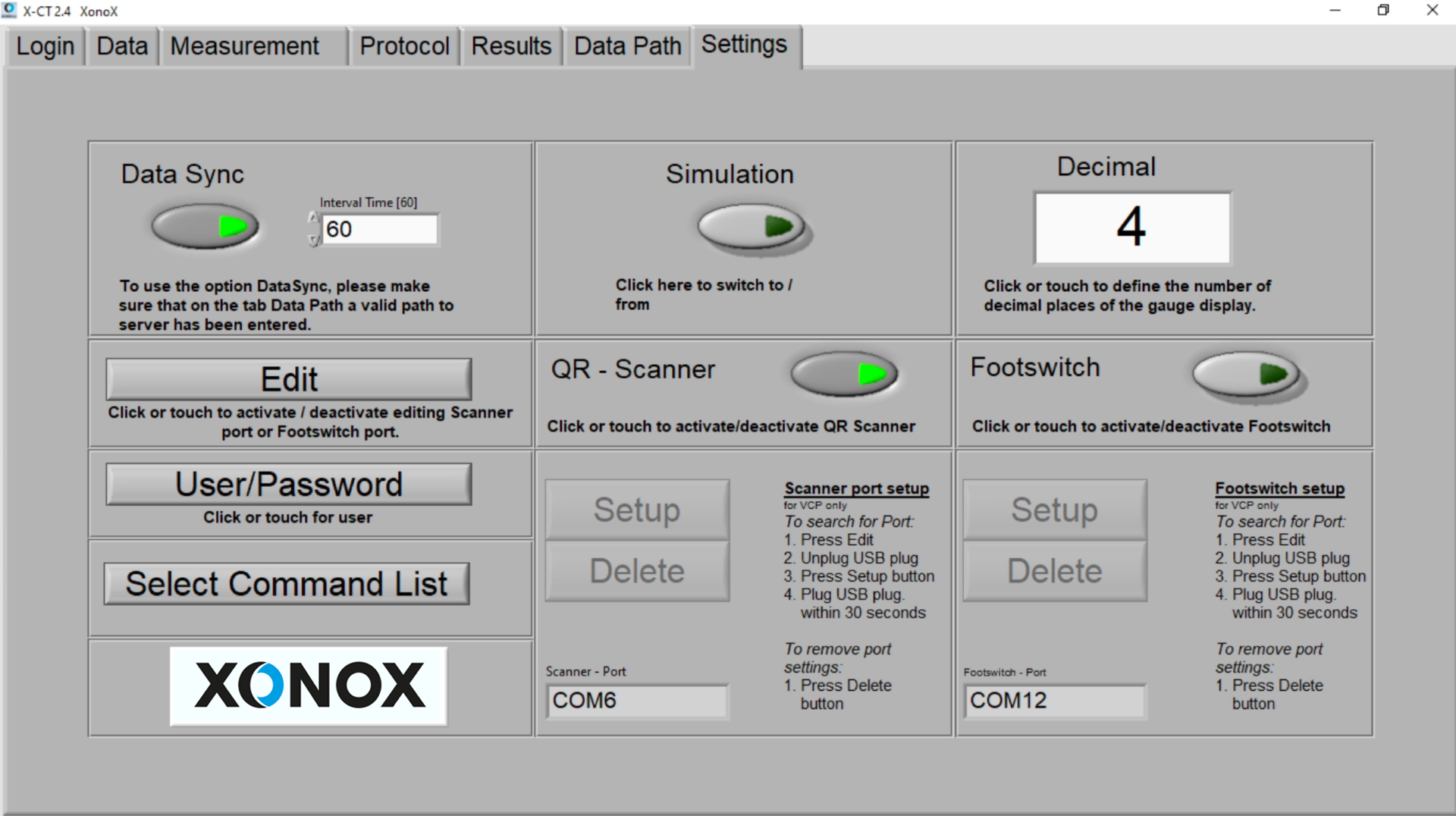

- quick setup for auxiliary equipment such as QR reader, footswitch etc.
- easy network integration and path settings for documentation
- automatic documentation of all measurements
- listing of CT, SAG depth, Total Hight, Apperture Diameter
- automatic marking IN/OUT of spec for all dimensions
- extensive data export functions + X-metroLINK compatible
