Centration // Wedge

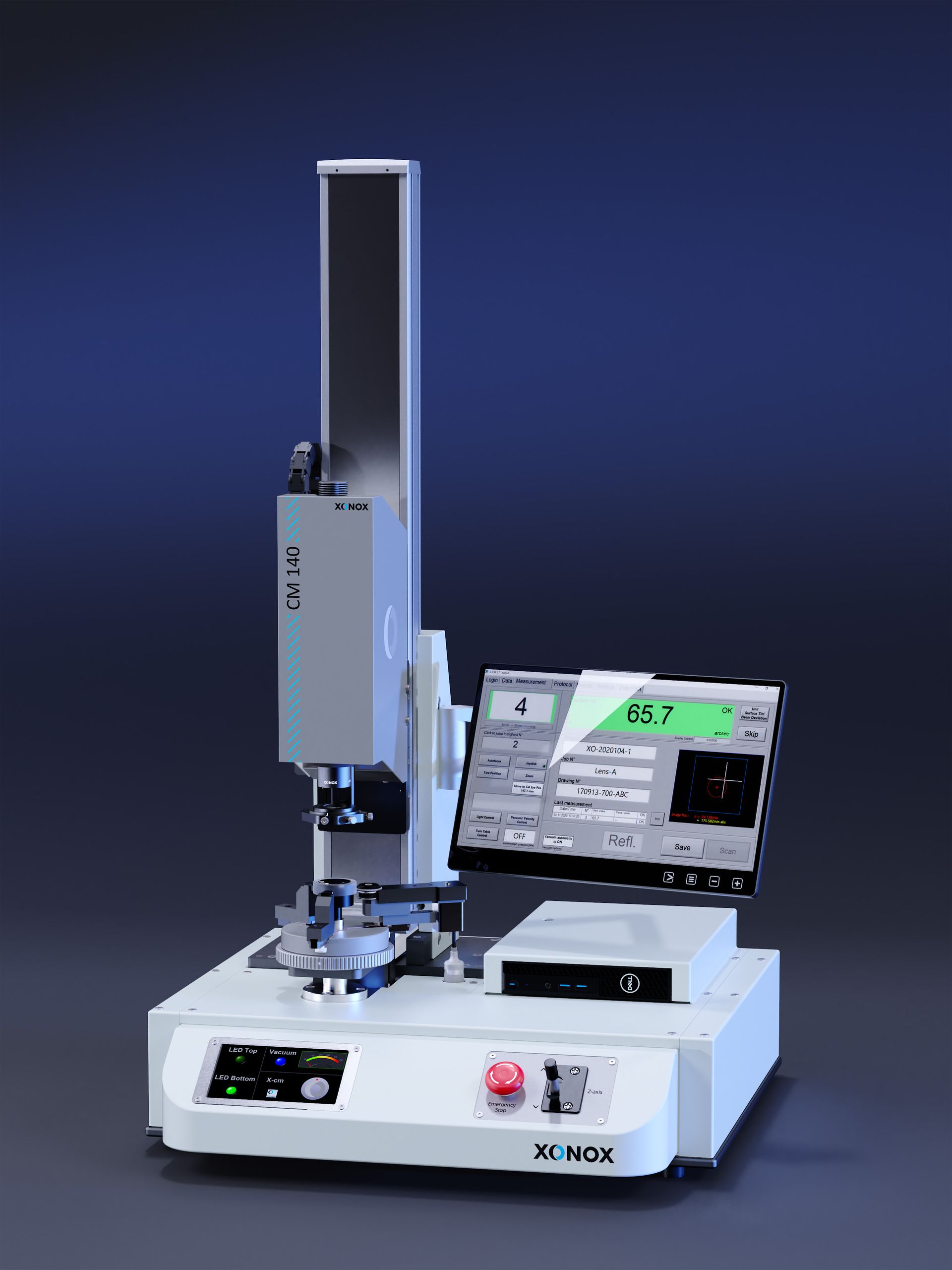

CENTRATION TESTING SYSTEM
- automatic z-axis positioning plus software supported electronic motion- and vacuum control, linked to the specific job
- additional HR screen, displaying actual status of rotation-, led- and vacuum level
- precise and easy to operate non-contact measurement system for determining centering errors on lens elements in production, quality inspection or metrology lab environments
- measurements facilitated by precision autocollimator and secondary substage collimator
- software recall of previous setups facilitates efficient use for recurring jobs
- lens centering can be measured in transmission or reflection
- unique, height adjustable chuck, automatically centers lenses of various diameters and correctly locates friction wheel for efficient loading and operation
- very fast and convenient setup of lensholder without any need for changing or adjusting a V-stop
- commonly used functions are conveniently located for easy access and direct control over Z-axis height, vacuum, speed, crosshair display
- large measurement range
- equipped with "X-cm", an extensive software and controller package, that offers various operating modes and provides automatic measurement results of complete series
- cementing of doublets and triplets by using additionally available accessories such as glue dispensers and UV light sources
- easy and touch screen optimized dialouge user interface
- automatic counting / numbering of lenses
- green (in spec) or red (out of spec) display of measurements
- data input manually or via OR code reader

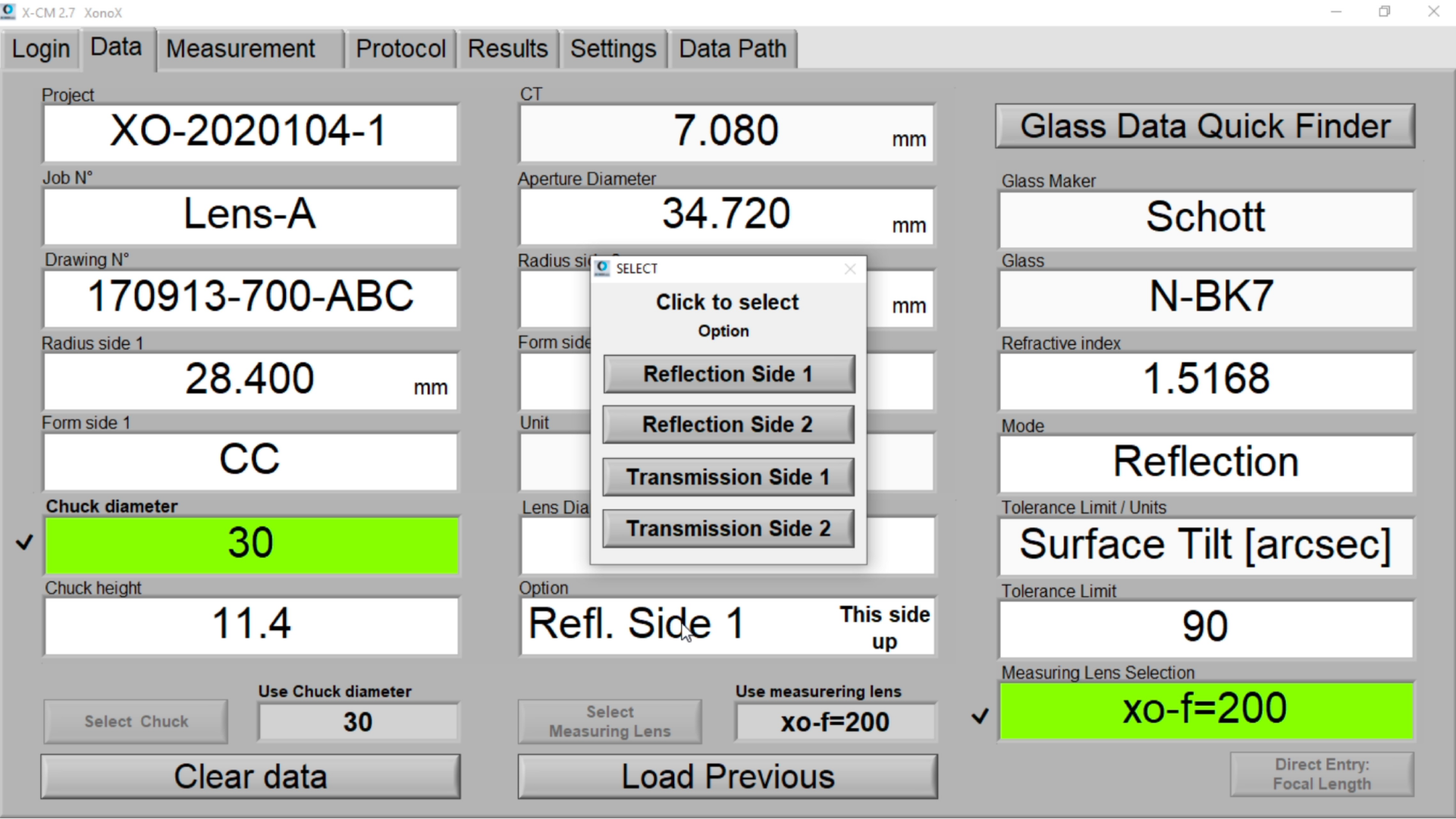

- selection of various measuring methods for reflection and tranmission
- selection and setup of focussing lens via selection tool or QR-scan
- selection of lens holder via selection tool or QR-scan
- selection of material via integrated database or QR-scan

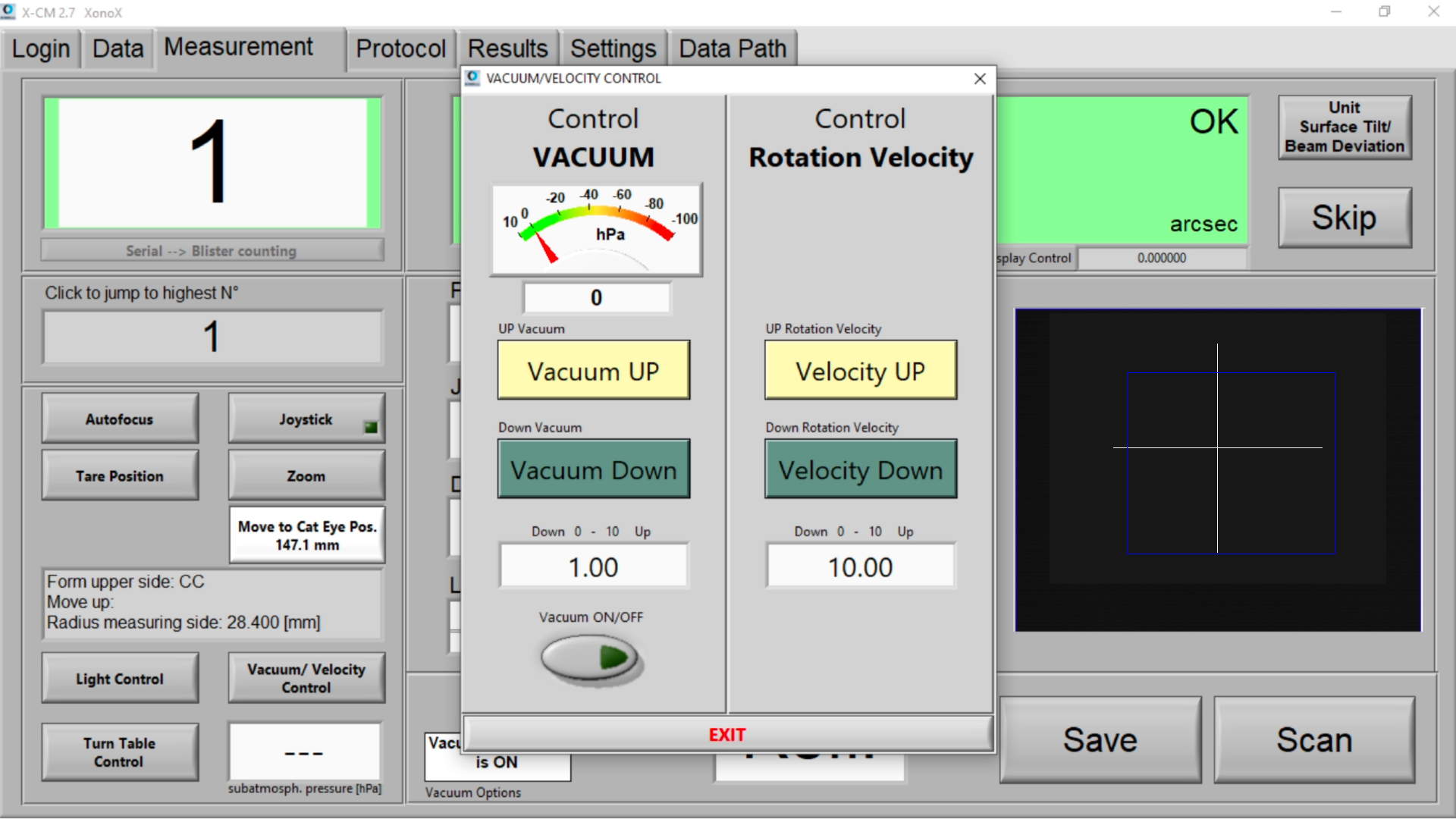

- electronic setup and controll for settings such as vacuum, velocity, number of rotations, brightness of crosshair, on and off for upper and lower collimator LED.
- live status of all settings displayed on seperate mini screen
- automatic calculation and positioning to measuring position
- automatic autofocus when reaching measuring position
- manual activation of autofocus any time when required, i.e. when testing lenses with higher CT variations
- selection for displaying measurement results in various units

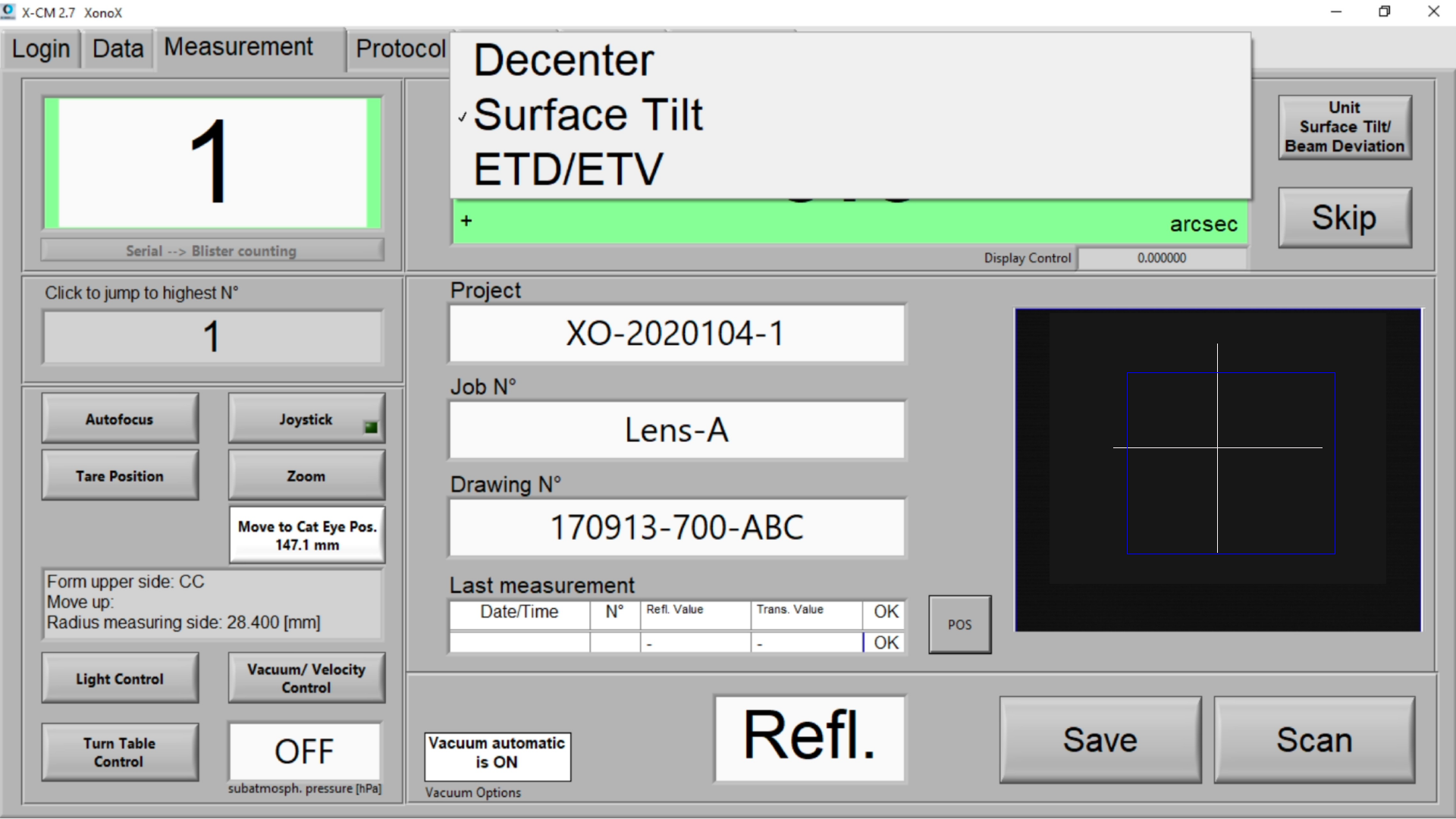

- choice for displaying measurement results in Surface Tilt (arc min and arc sec), edge rounout / decentration TIR (µm) or edge thickness variation ETV (µm)
- automatic documentation of all measurements
- listing of optical axis, tilt and edge runout
- automatic marking IN/OUT of spec for all dimensions
- extensive data export functions + XONOX IQC compatibility
