X-fringe



ADVANCED PHASE SHIFTING FRINGE ANALYSIS SYSTEM

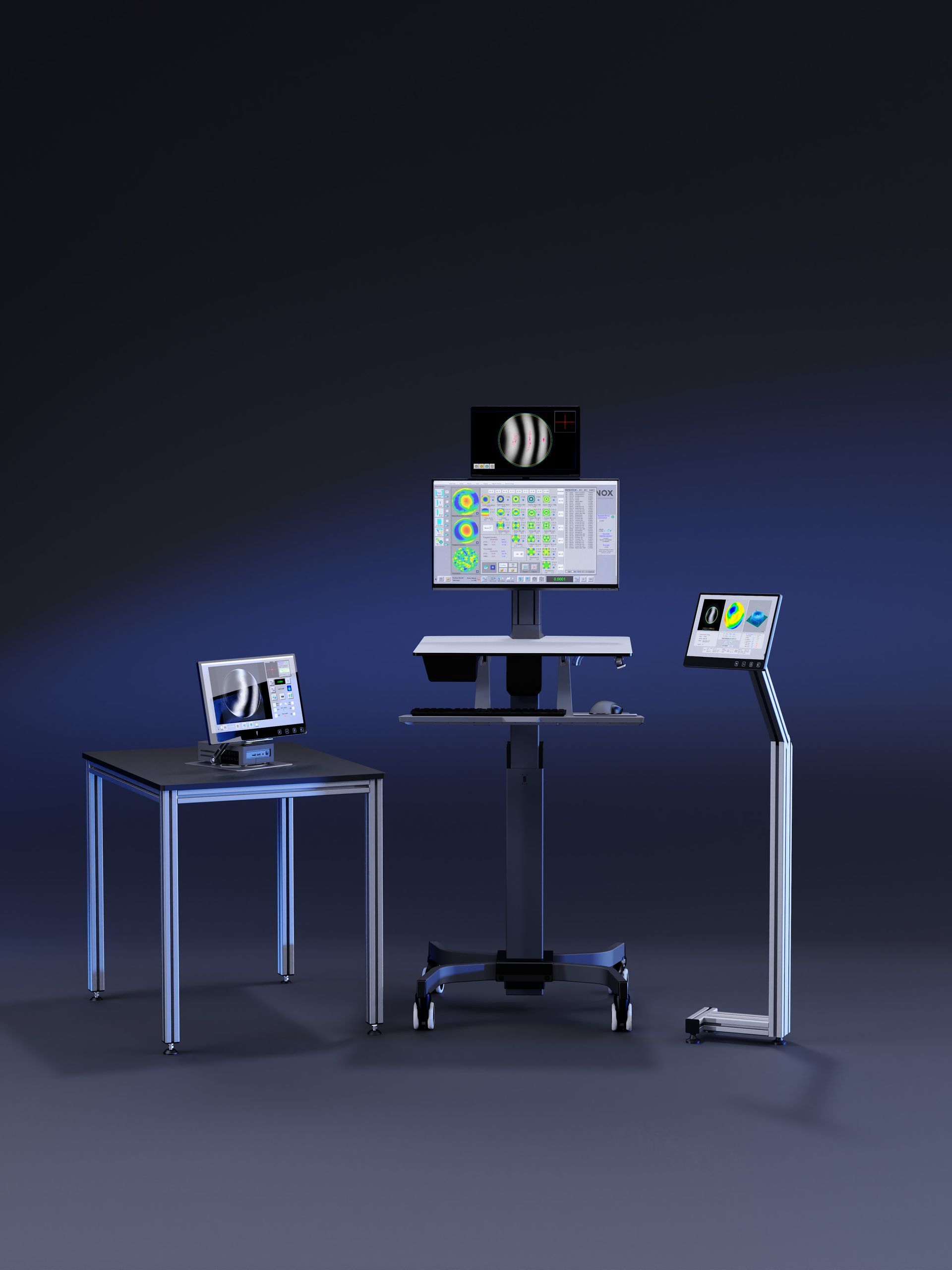

• advanced because of availability in various hardware configurations depending on use case and space availability. Operation in both ways, traditional with 2 screens, keyboard and mouse or via touch screen optimized user interfaces on compact hardware setups

• smart because of full setup via QR code, hardware recognized transmission spheres and lens holders, fully automated reference error subtraction and automatic masking/scaling

• modular because of its "mode structure" allowing the user to select the perfect fitting mode for his application such as expert, production, radius measurement, plano, multiple workpieces, series, etc.

• precise because of full hardware integration with linear measuring system allowing automatic compensation for cats-eye and confocal position misplacement. Leading to extremely high radius of curvature/power measurements without human factor.

• vibration insensitive because of using advanced statistical methods implemented into the wavefront reconstruction algorithms.

• easy to use internationally because of a maximum usage of icons and symbols instead of text.
