Diameter // Roundness // Taper

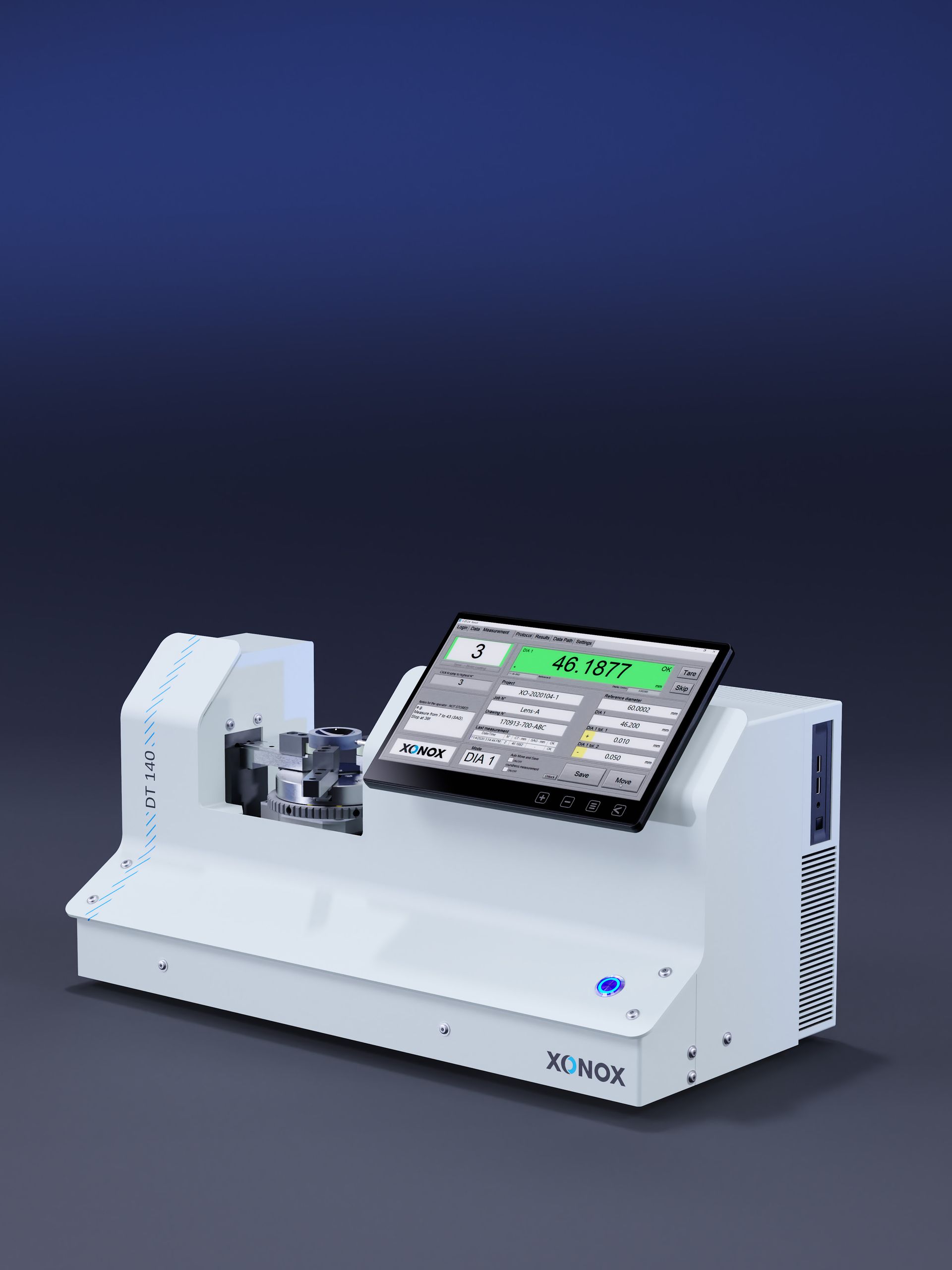

DIAMETER MEASURING SYSTEM
- equipped with electronic control of measuring cycle via touch screen interface. Software controlled editing and configuration of automated motion cycles, linked to the specific job
- highly precise and easy to use system for measuring the diameters, roundness and cone on optical elements in both, production and quality inspection environments
- designed for long term reliability and cost effective operation
- measurement of secondary diameters, roundness and taper are supported in addition to the primary diameter
- lenses automatically centered with an innovative precision 3-jaw chuck system
- direct measurement of diameter achieved through automatic, pneumatic actuation of probes that touch the edge of the work-piece
- probe contact height is adjustable to be compatible with steps and other edge features
- optimized for safe, fast and easy setup and loading of workpiece
- large measurement range from below Ø8mm up to Ø140mm
- software and controller package "X-dt" offers additional measure-ment modes, automatic documentation creation and datalogging of measurement results

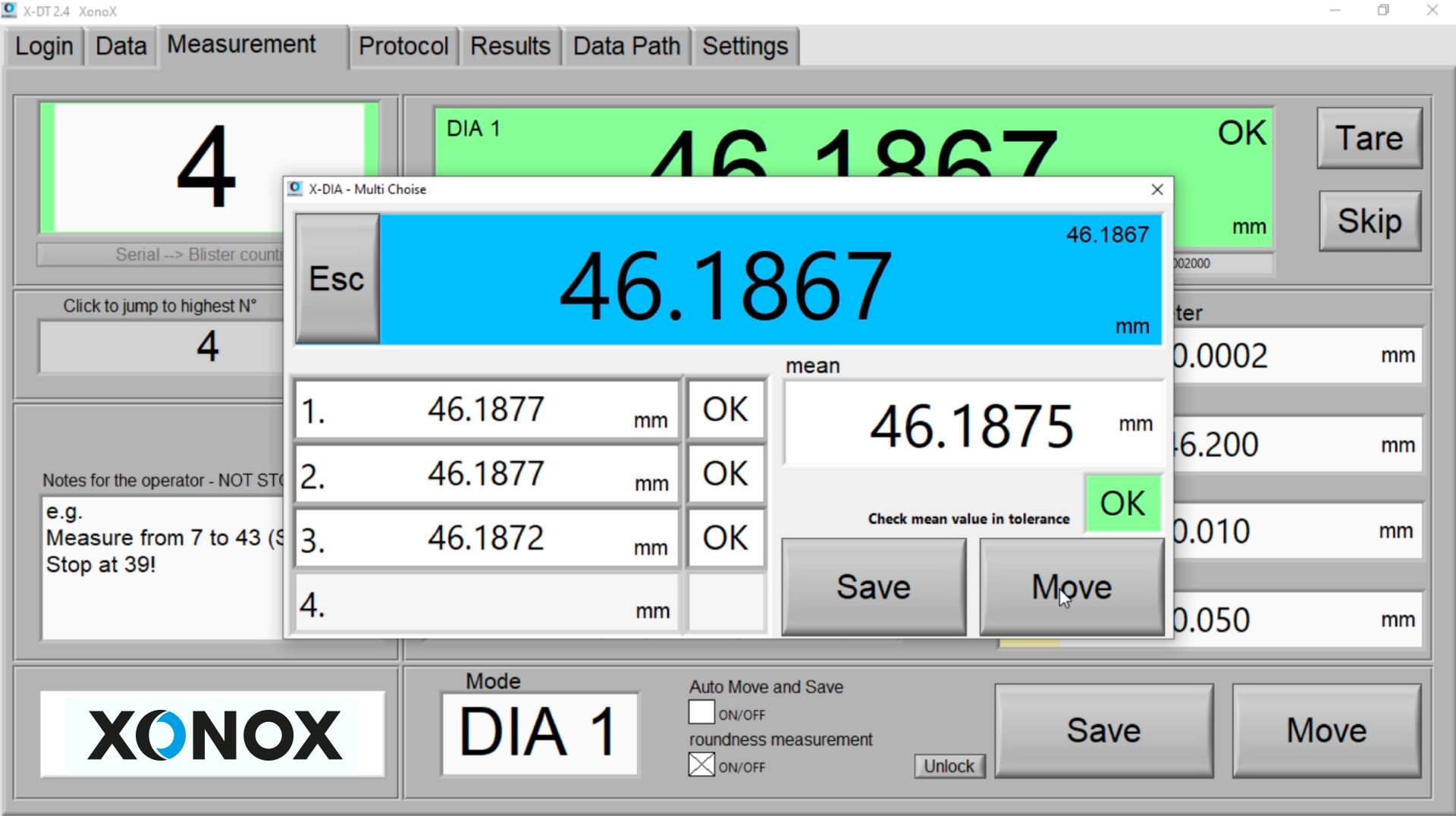

- easy and touch screen optimized dialogue user interface
- automatic counting / numbering of lenses

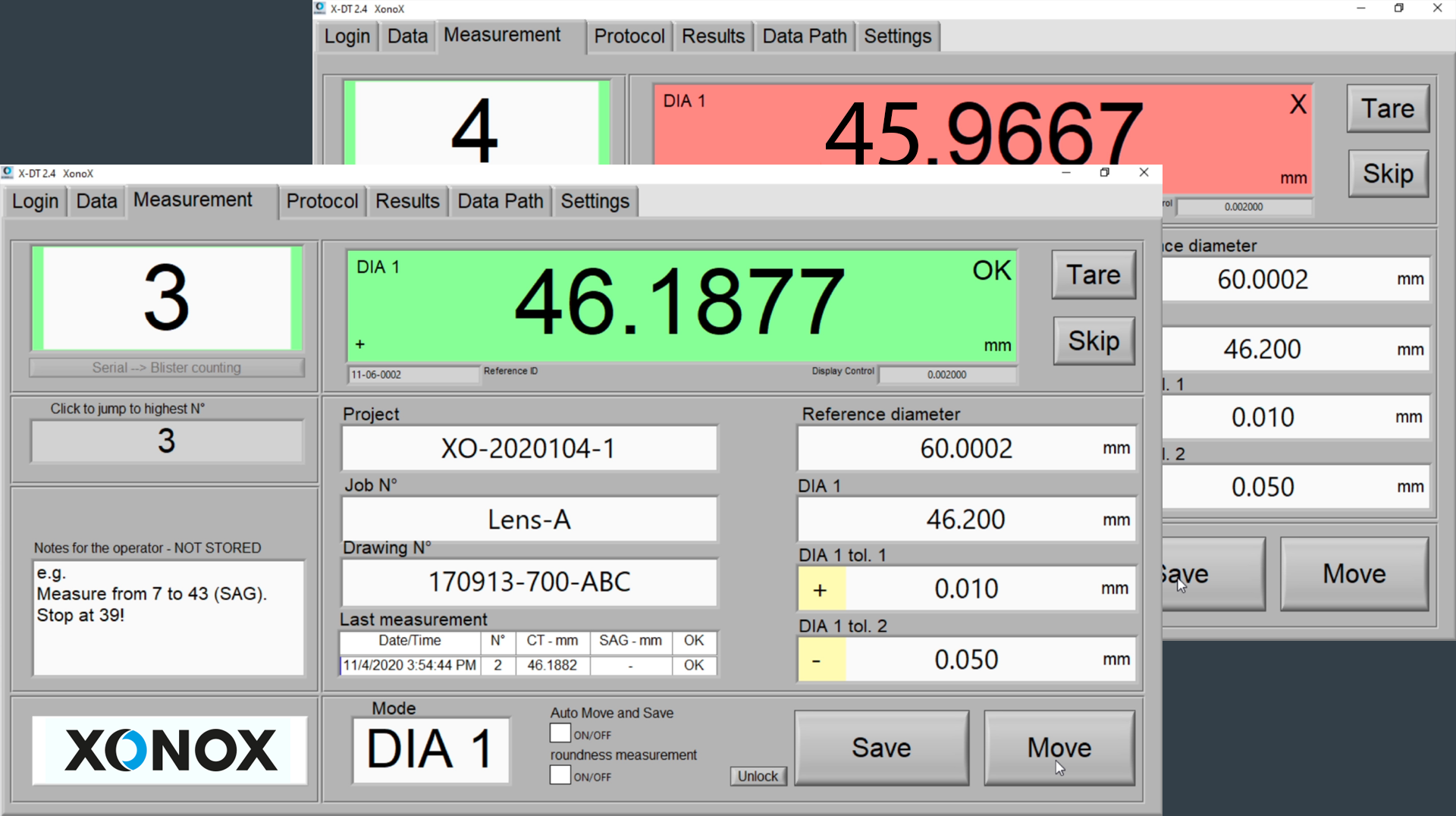

- green (in spec) or red (out of spec) display of measurements
- data input manually or via OR code reader
- possibility of roundness measurement, selectable via separate interface
- possibility of measuring 2 steps with different diameters or alteratively taper/conic for lenses with higher edge cylinders

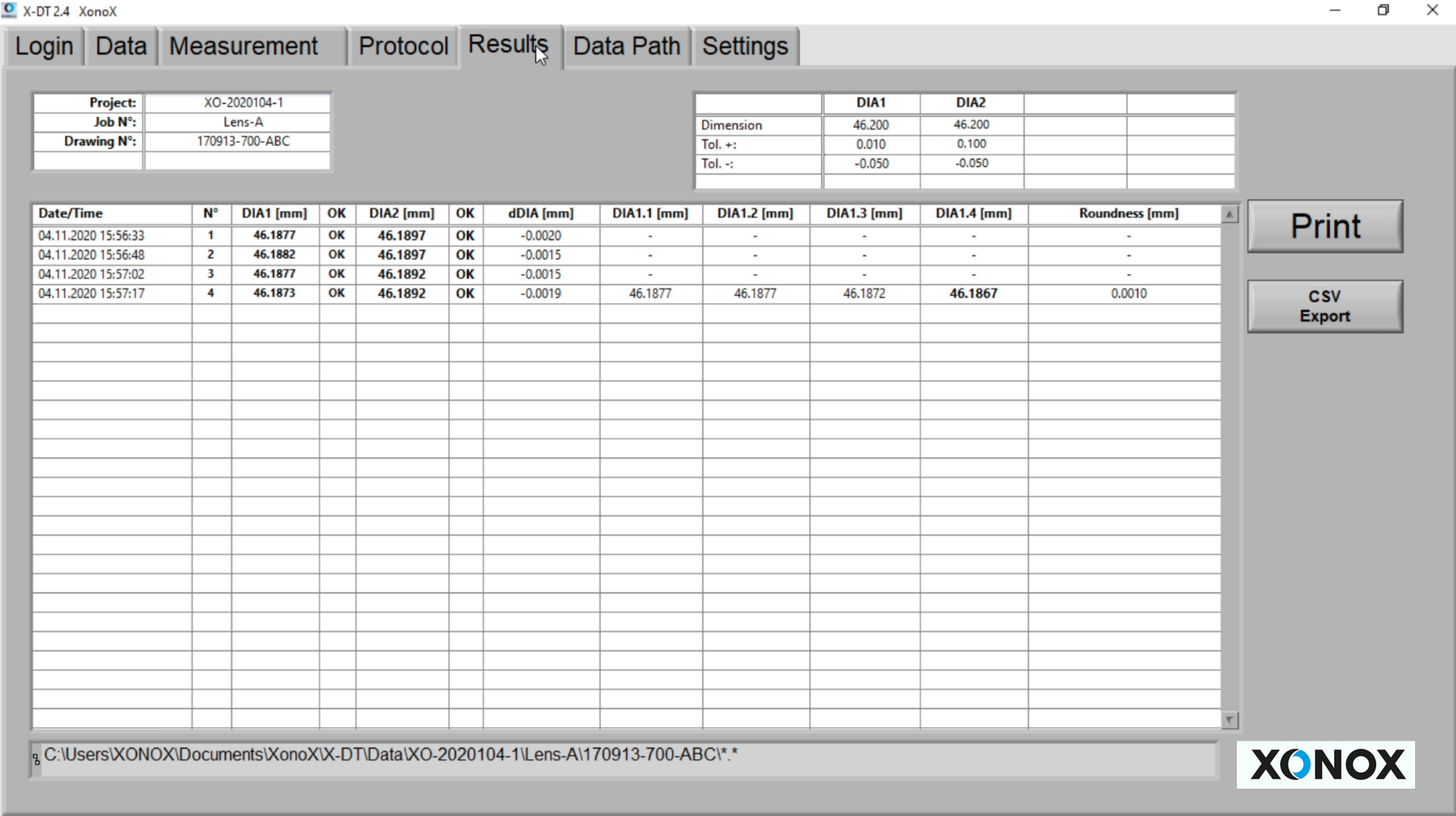

- automatic documentation of all measurements
- listing of diameters, roundness, taper
- automatic marking IN/OUT of spec for all dimensions
- extensive data export functions + XONOX IQC compatibility
