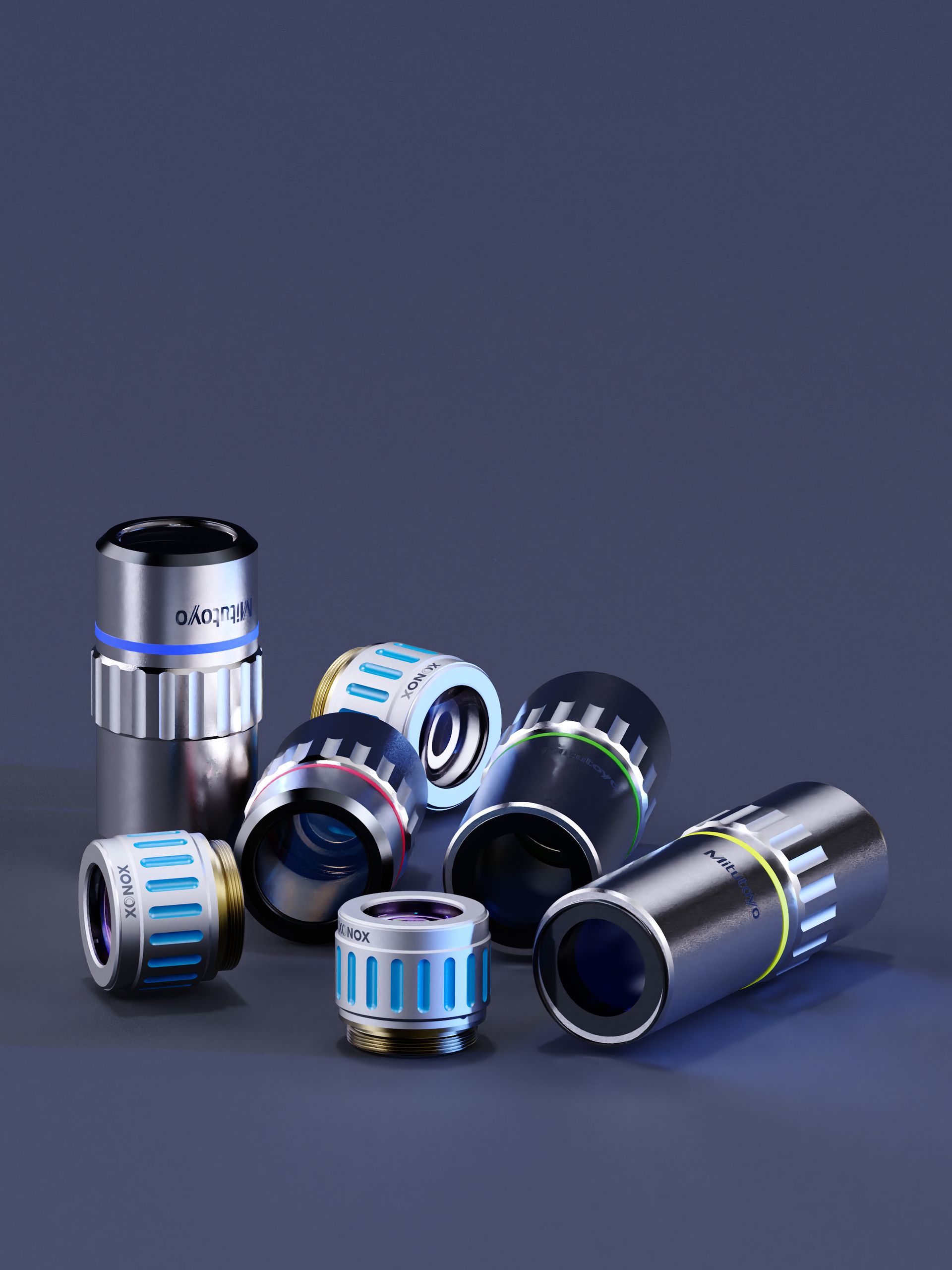

INTERFEROMETER OBJECTIVES


  • compatible with XONOX X-mini - phase shifting Twyman Green style interferometer


  • infinity corrected design


  • very affordable and cost efficient


  • industry standard M26 x 0.7 interface


  • selection provides excellent coverage for the measurement of spherical surfaces 13mm (0.5") and smaller (many more compatible objectives are commercially available)


  • high quality reference surface is supplied for objectives


  • software supportet calibration on X-mini Interferometer system


  • X-mini system accuracy is λ/20 PV due to integrated reference and advanced system error compensation via XONOX X-fringe phase shifting analysis software


  • for testing flat surfaces of diameter 20mm and smaller, there is no objective required


  • small form factor

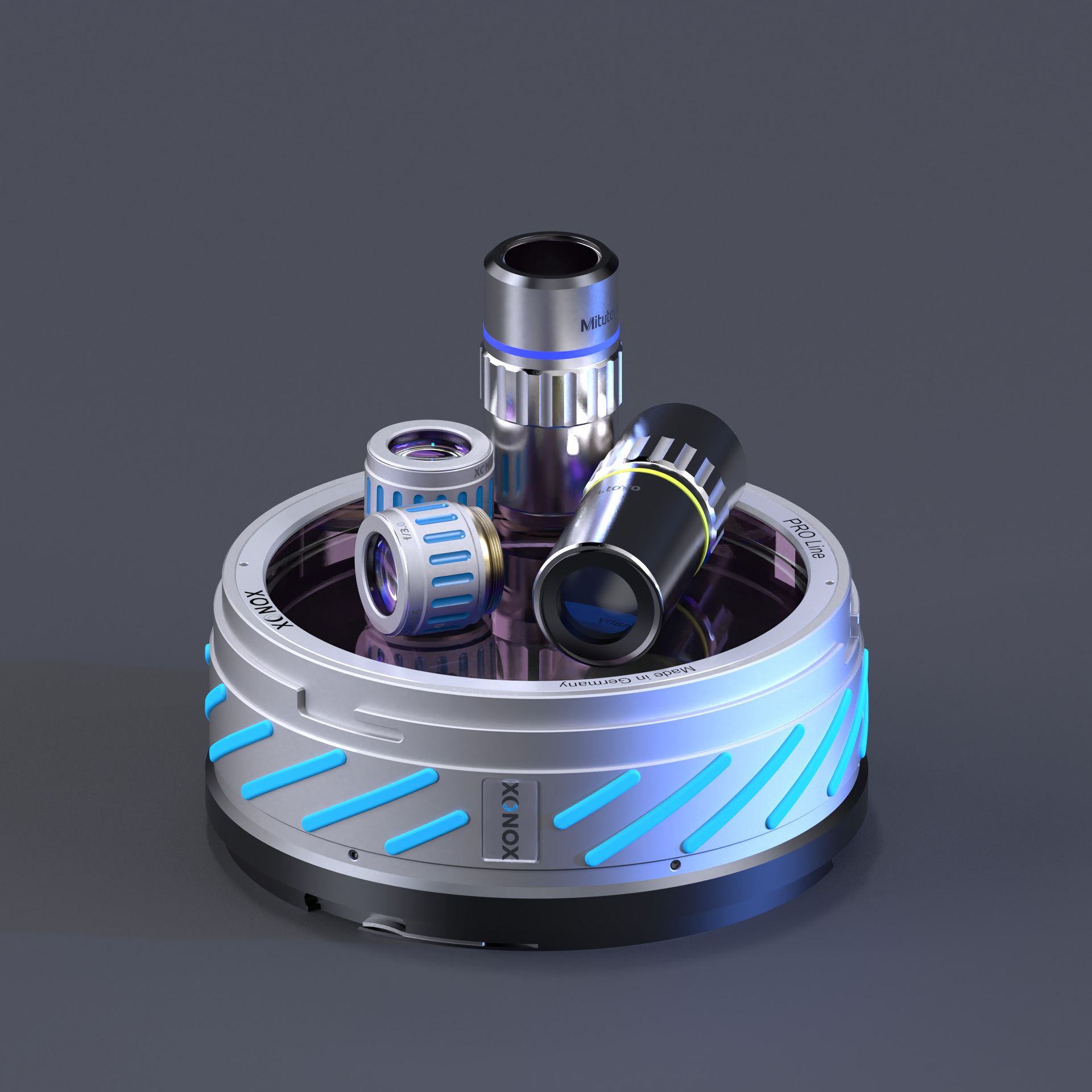

Size compared to XONOX 4+ TS

TECHNICAL DATA X-mini Objective Line

OBJECTIVE f/0.56 f/0.67 f/0.90 f/1.20 f/1.80 f/3.00 f/3.75 f/5.00 f/7.50
MANUFACTURING Mitutoyo Mitutoyo Mitutoyo Mitutoyo Mitutoyo XONOX XONOX XONOX XONOX
TYPE 100X 50X HR 50X 20X 10X f=60 f=75 f=100 f=150
NUMERICAL APERTURE 0.90 0.75 0.55 0.42 0.28 0.17 0.13 0.10 0.07
WORKING DISTANCE [mm] 1.30 5.20 13.00 20.00 34.00 51.50 67.50 88.80 141.30
MOUNTING INTERFACE M26 x 0.7 Thread M26 x 0.7 Thread M26 x 0.7 Thread M26 x 0.7 Thread M26 x 0.7 Thread M26 x 0.7 Thread M26 x 0.7 Thread M26 x 0.7 Thread M26 x 0.7 Thread
HOUSING DIAMETER [mm] 34 34 34 34 34 31 31 31 31
